AI
Stage 7
Stage

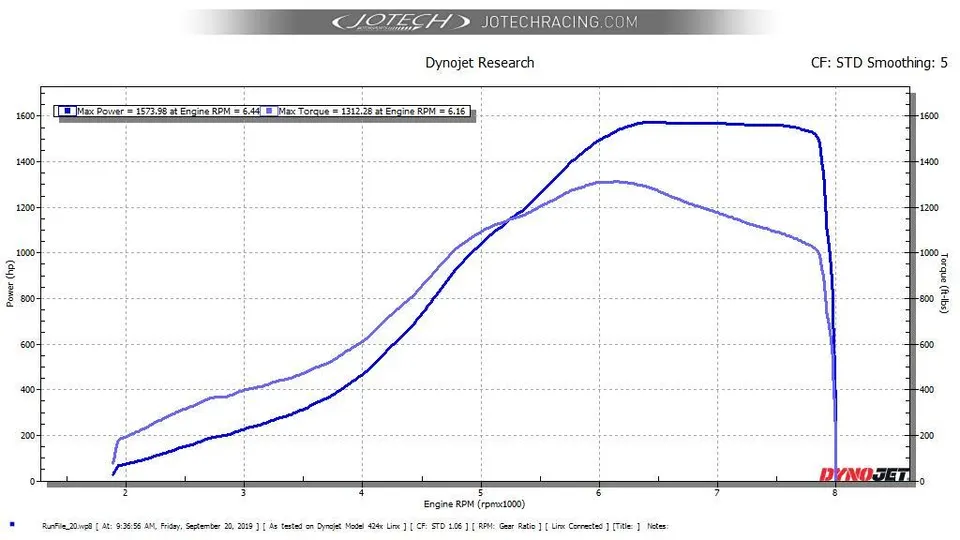

1,574 WHP
Wheel HP
1,312 lb-ft
Torque
ROBERT WANG
Owner
Build sheet
Engine

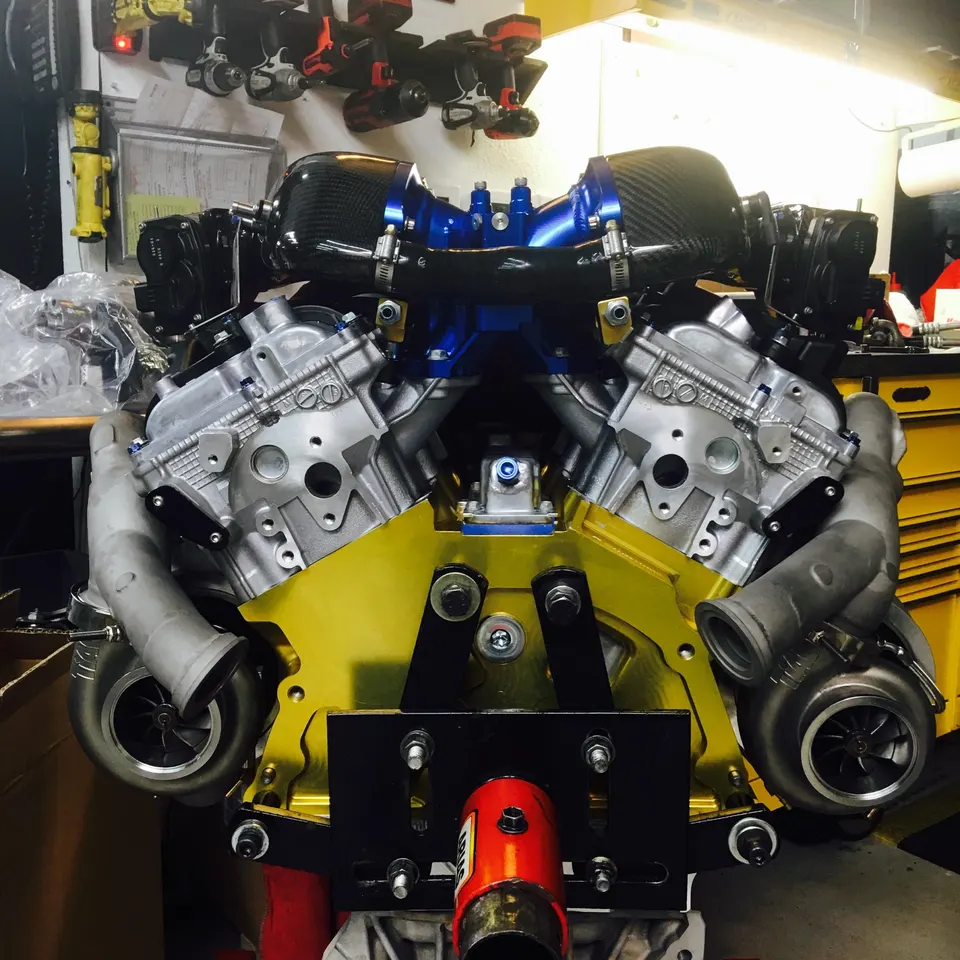

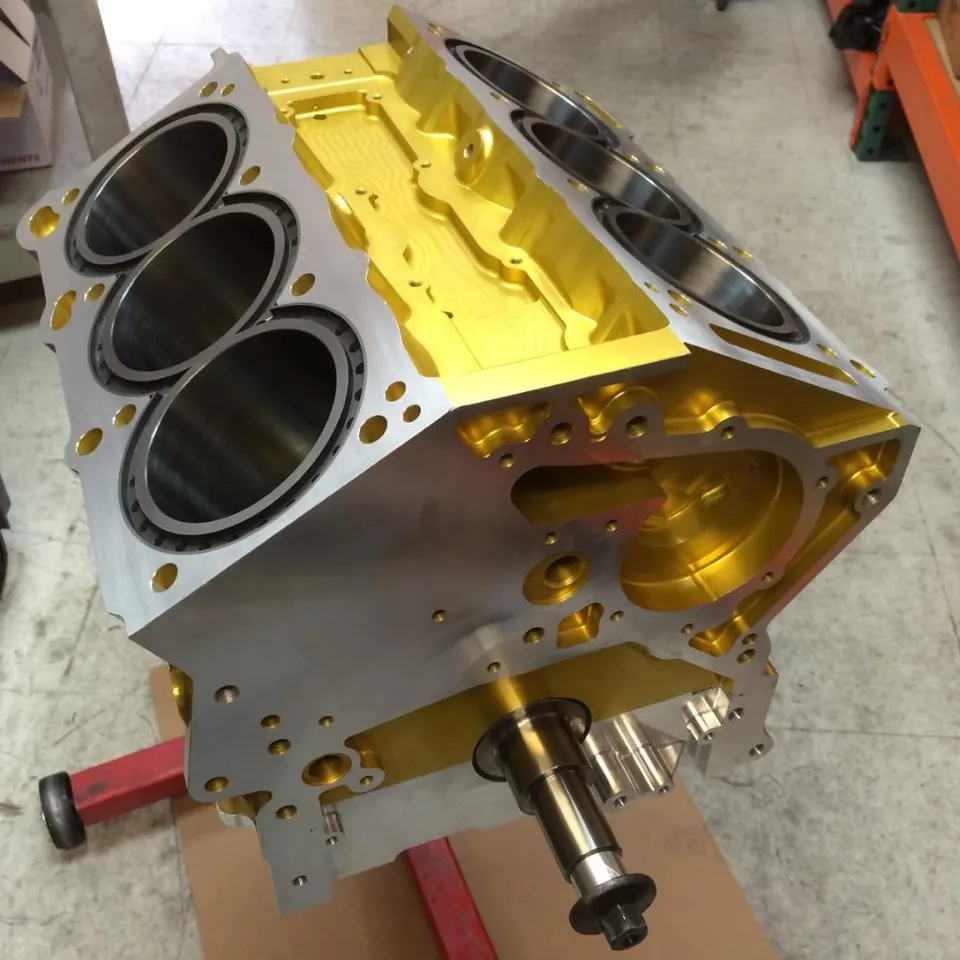

- Willall Billet block w/Billet Crank | Willall Billet engine girdle

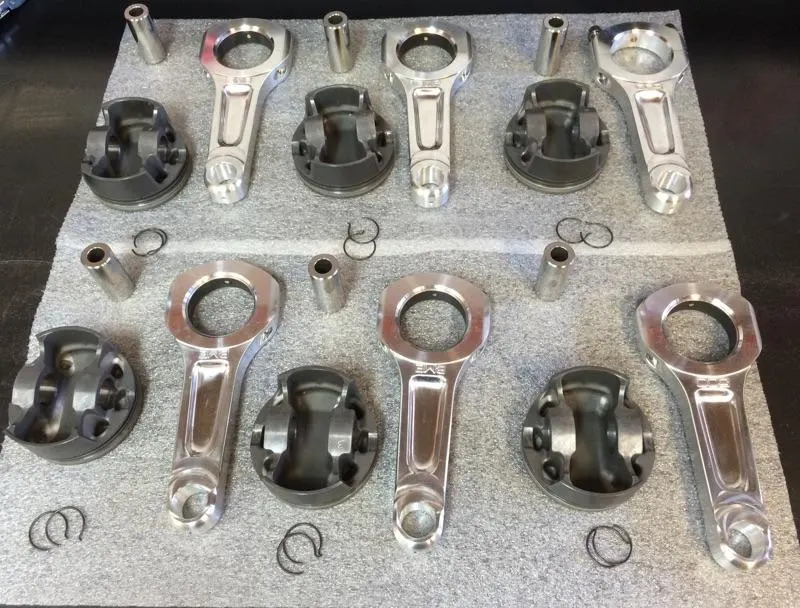

- CP Pistons | Billet Aluminum Connecting Rods
- ETS CNC Cylinder Heads | Tomei Camshafts
- Ferrea Complete Valvetrain
- ARP Main | Head Studs
- ATI Engine Dampener | GT1R Flywheel

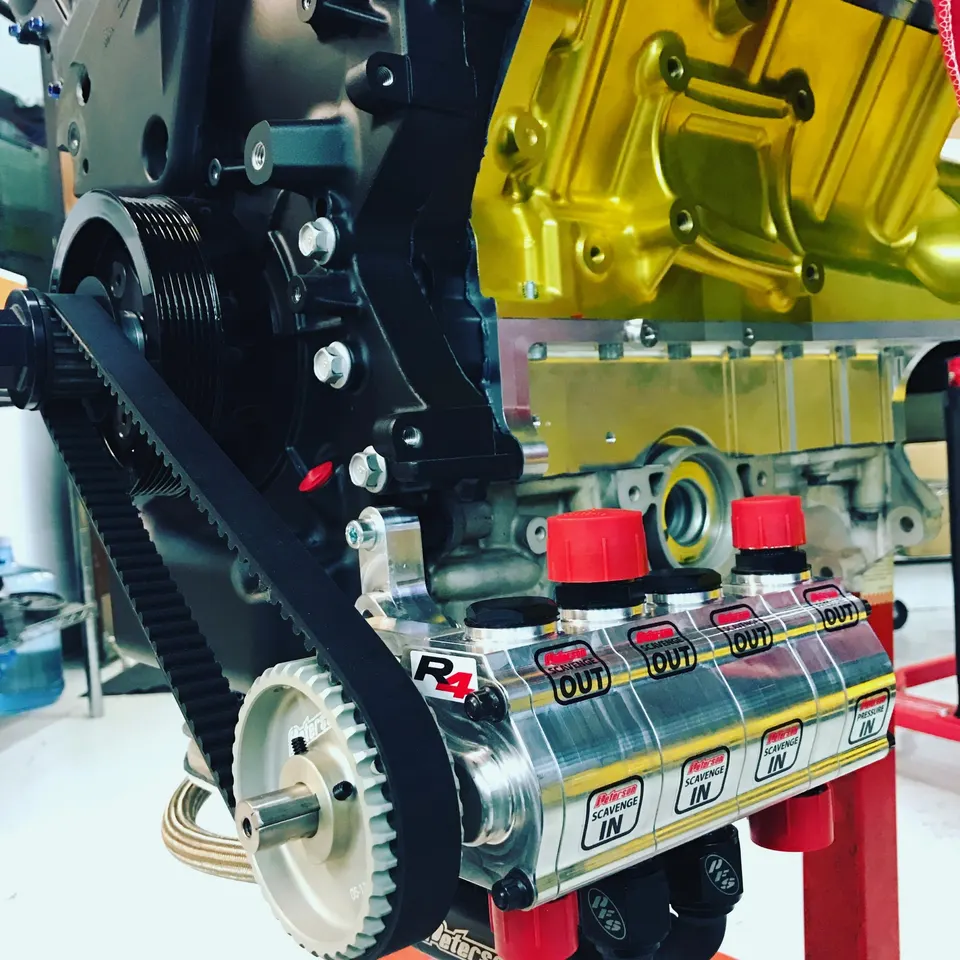

- Magnus Dry Sump Kit w/ Jotech Dry Sump Lines

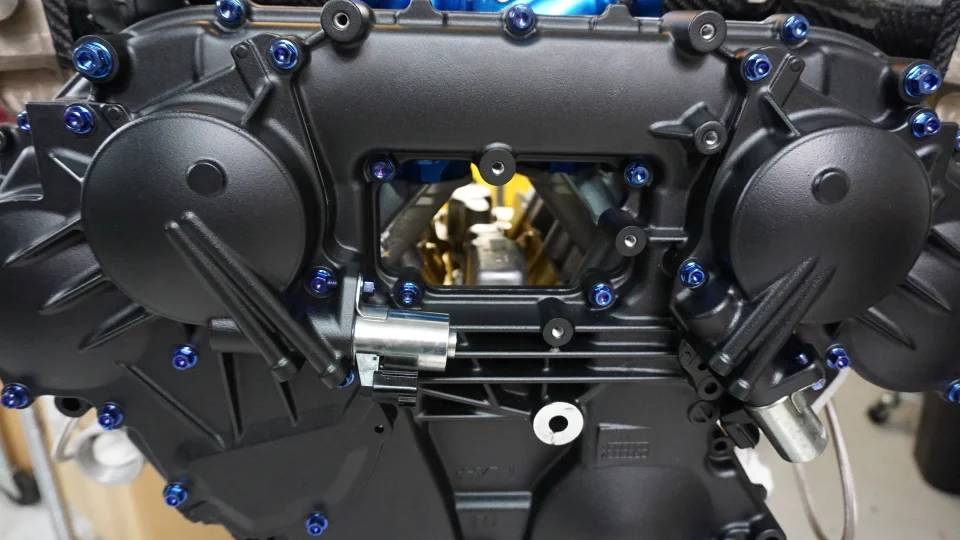

- Titanium engine bolt kit
- Alpha Engine Oil Cooler
- GT1R Billet Diff Cover, Brace, & Catch Can
- Jotech Motorsports rear mounted transmission oil cooler

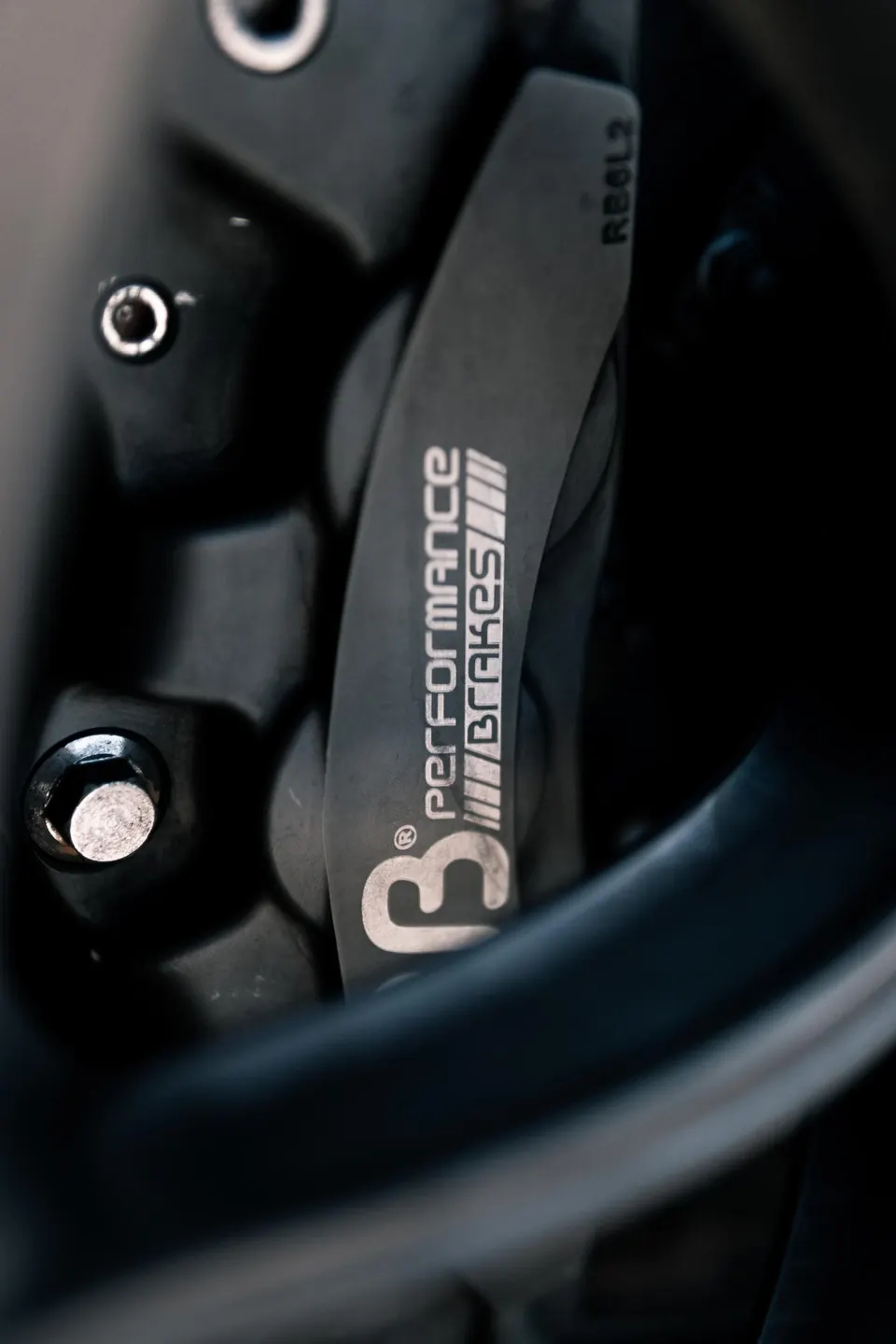

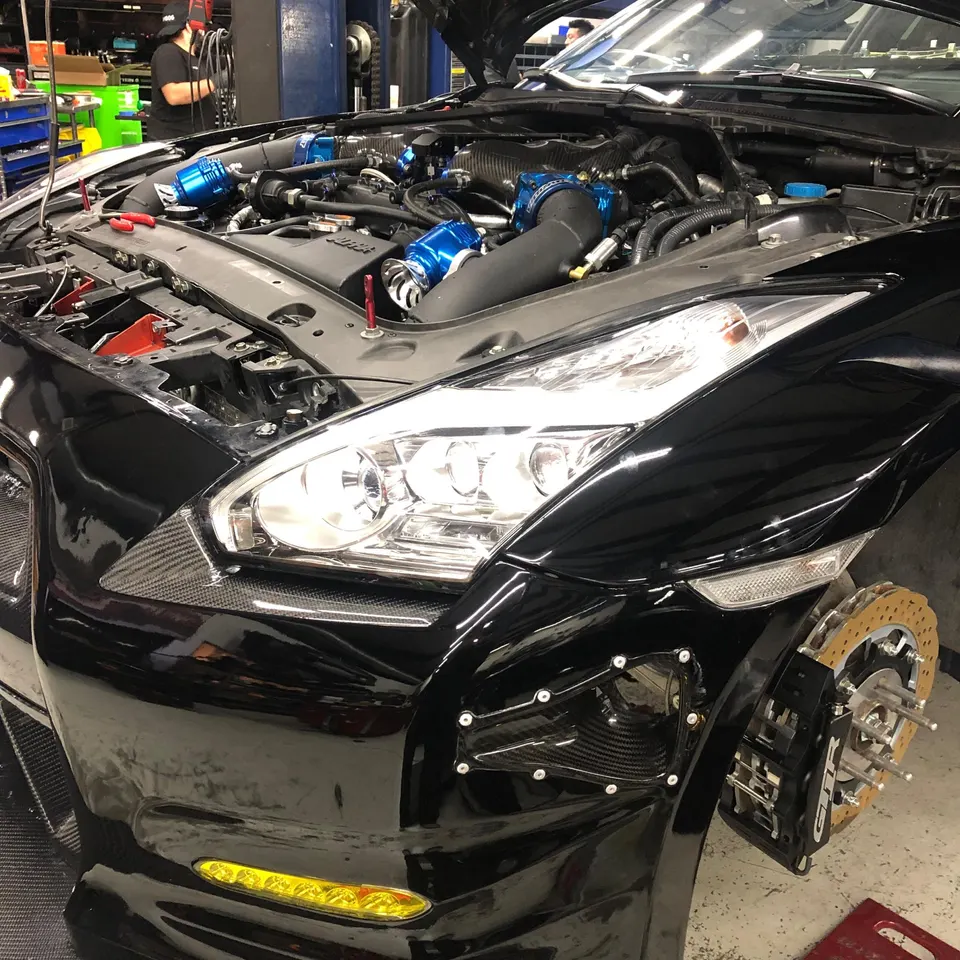

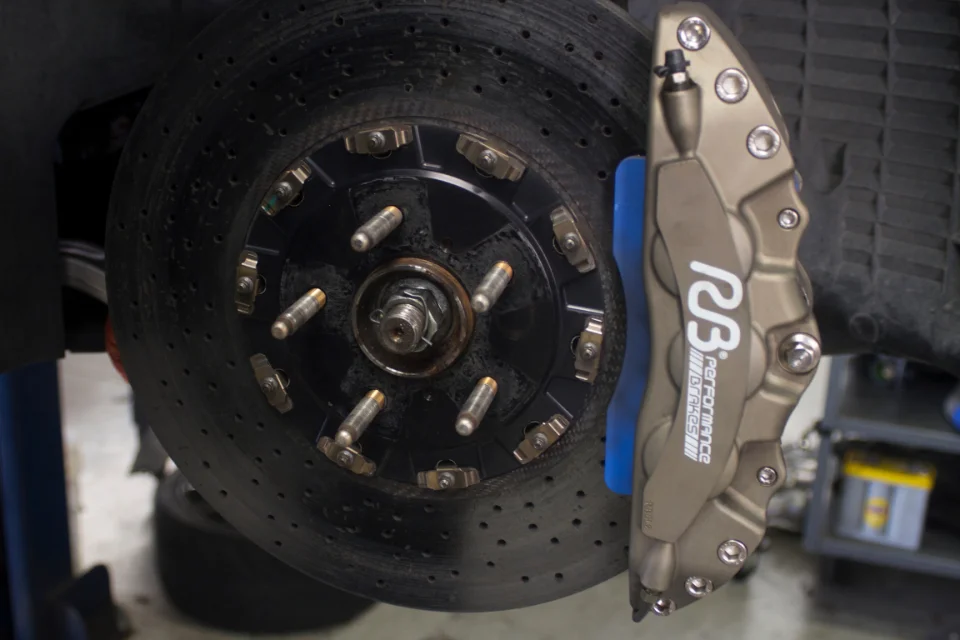

- RB Monoblock Big Brake Kit
Induction

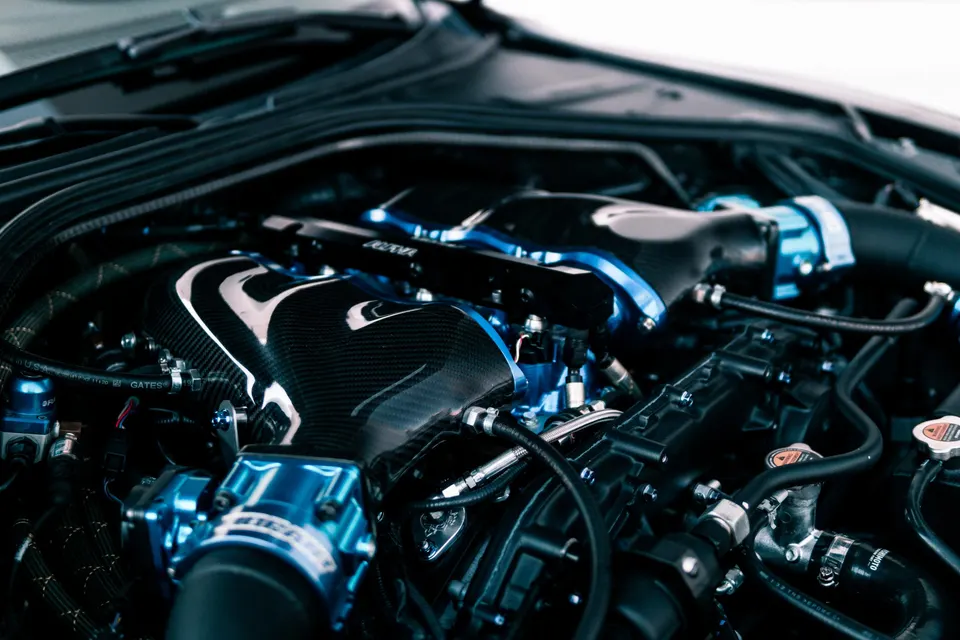

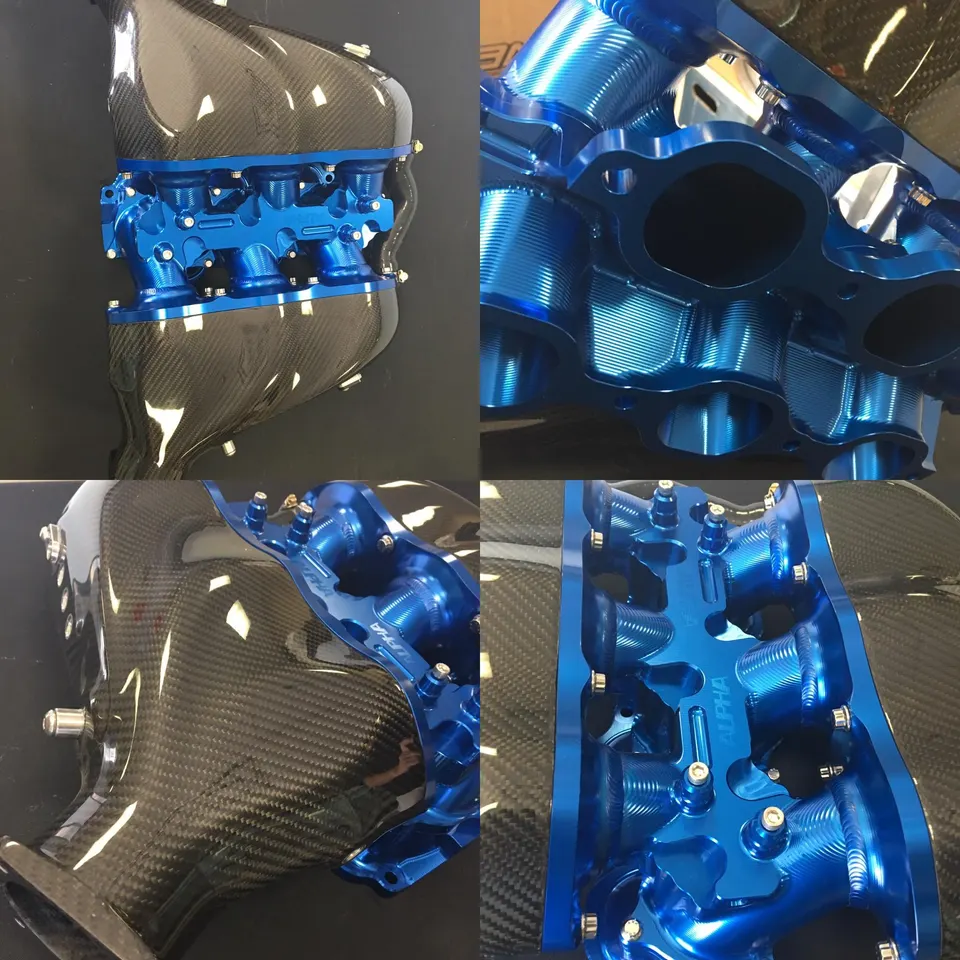

- Alpha Carbon Fiber / Billet Intake Manifold (Anodized Blue) 12 Injectors

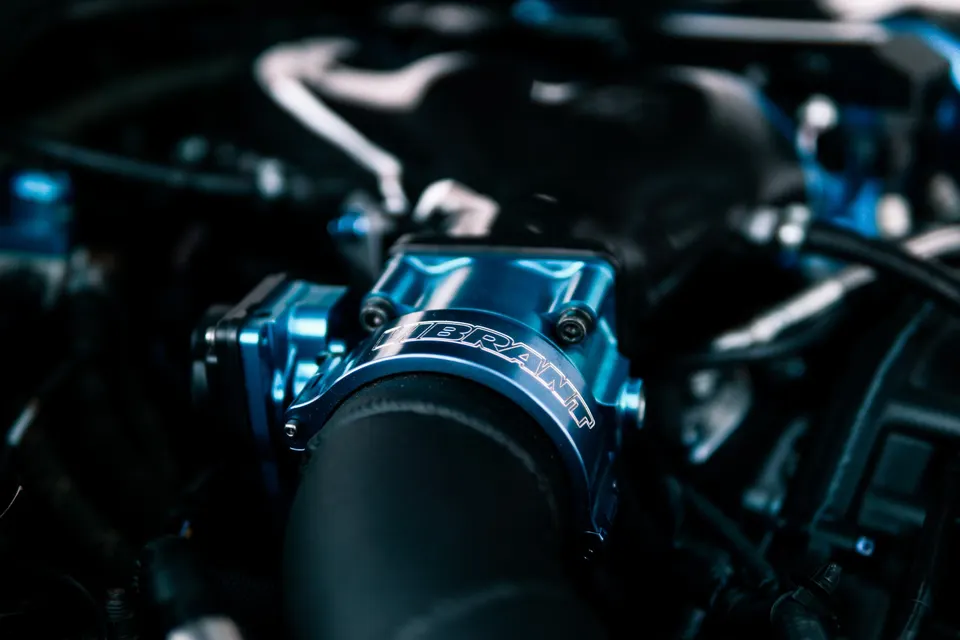

- AT Power Billet Throttle Bodies (Anodized Blue)
- Jotech Catch Can w/ Custom return & vacuum lines back into dry-sump
- Jotech Custom 3.5" Dual Air Intakes w/ Vibrant velocity stacks
Turbo & Boost

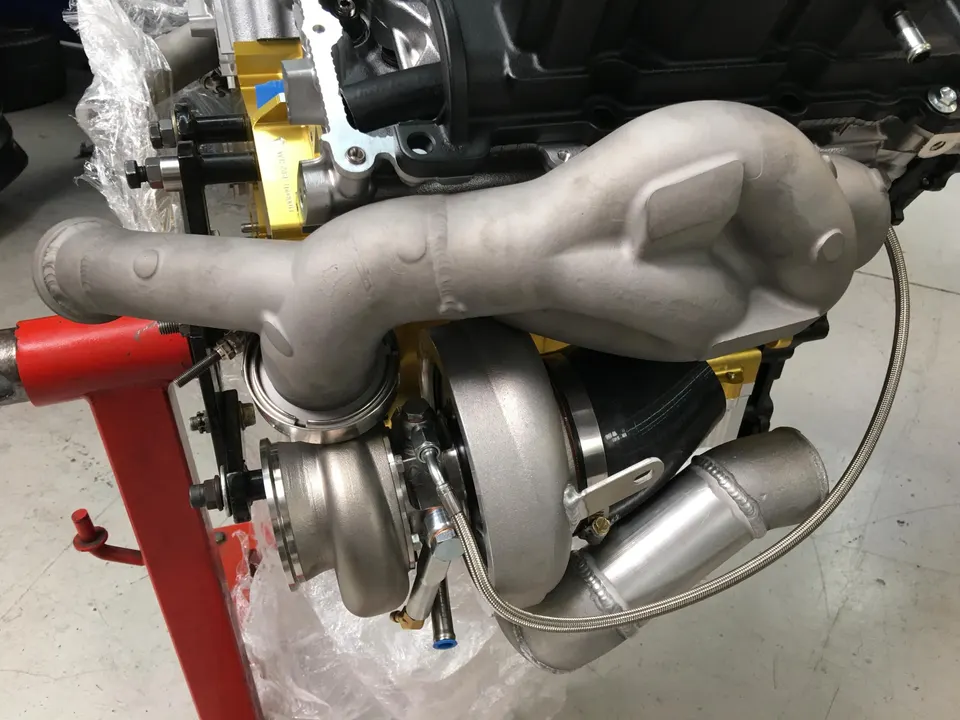

- ETS Pro 1700 Twin Turbo Kit w/ Garrett GTX3584RS Gen 2 Turbos
- Tial MVR Wastegates

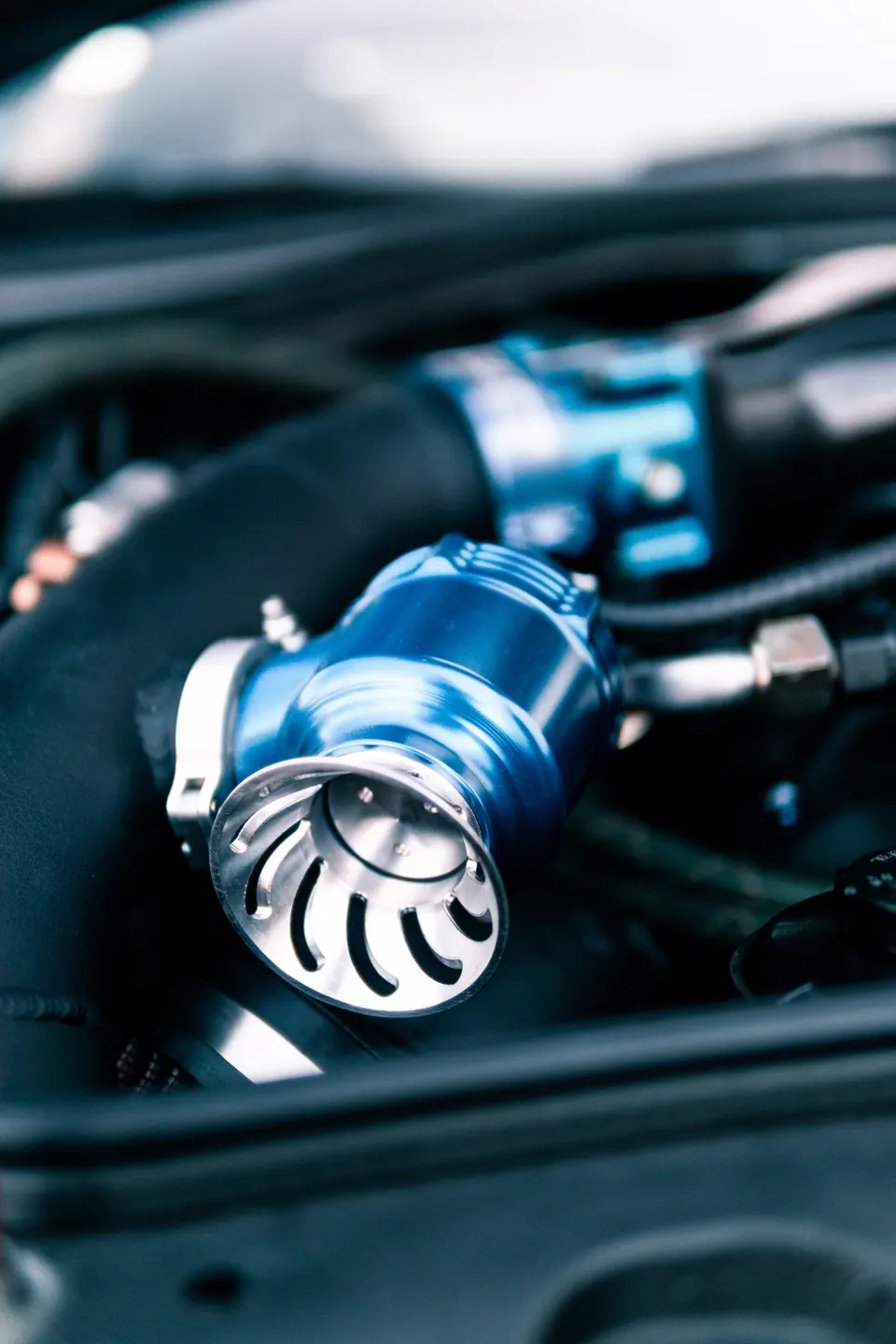

- Tial QRJ BOV's

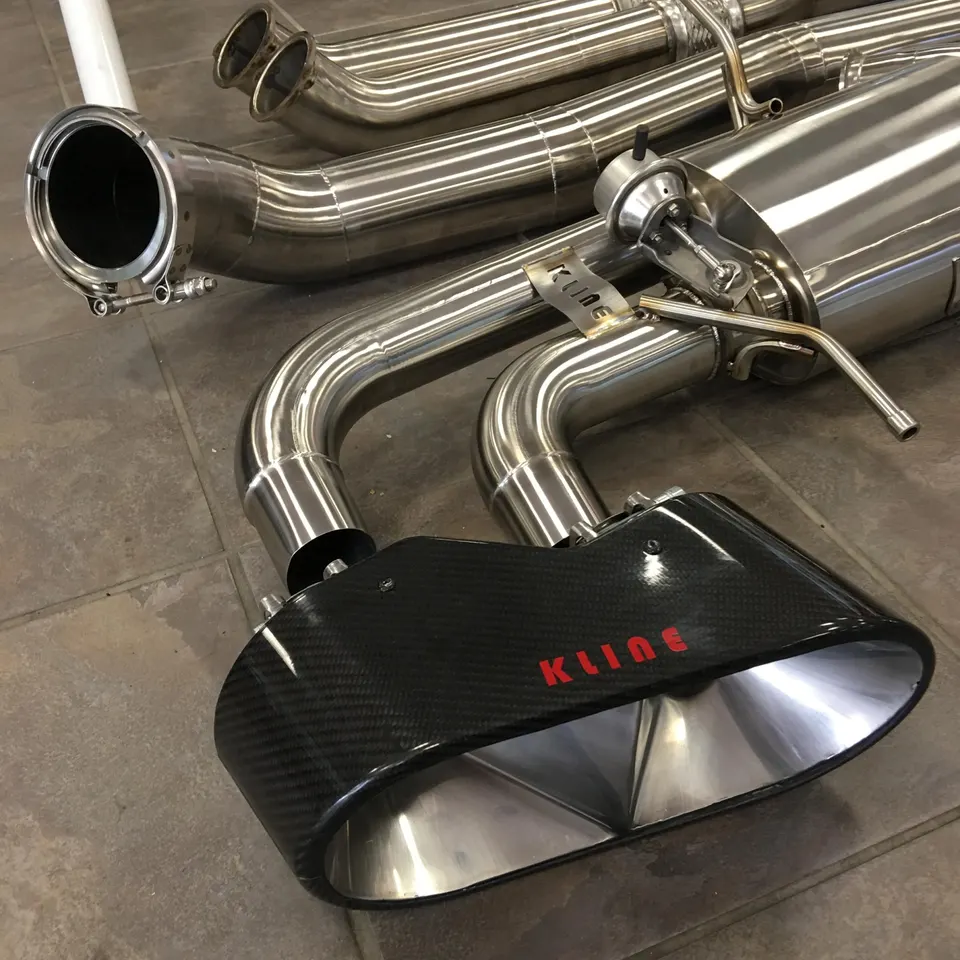

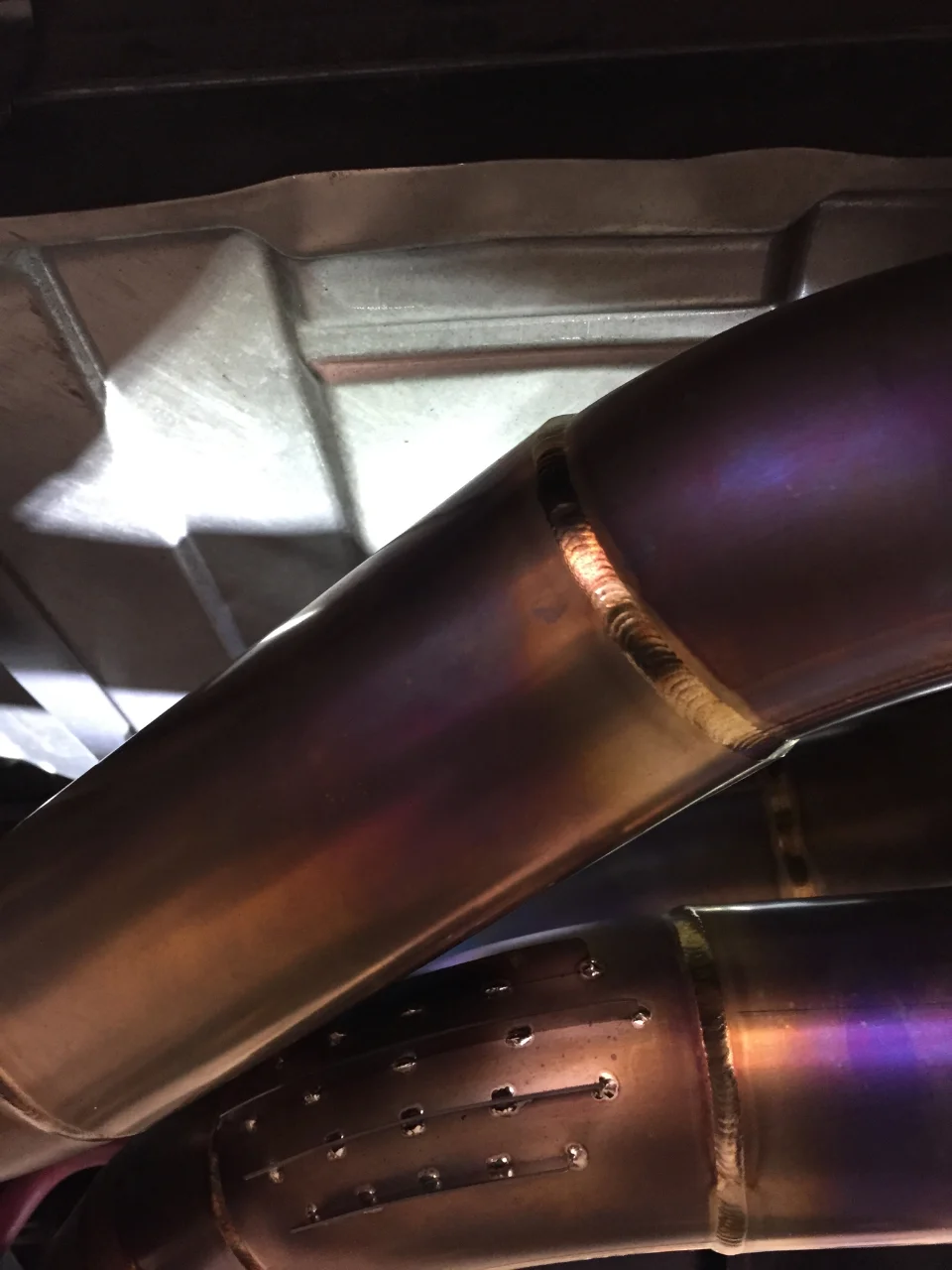

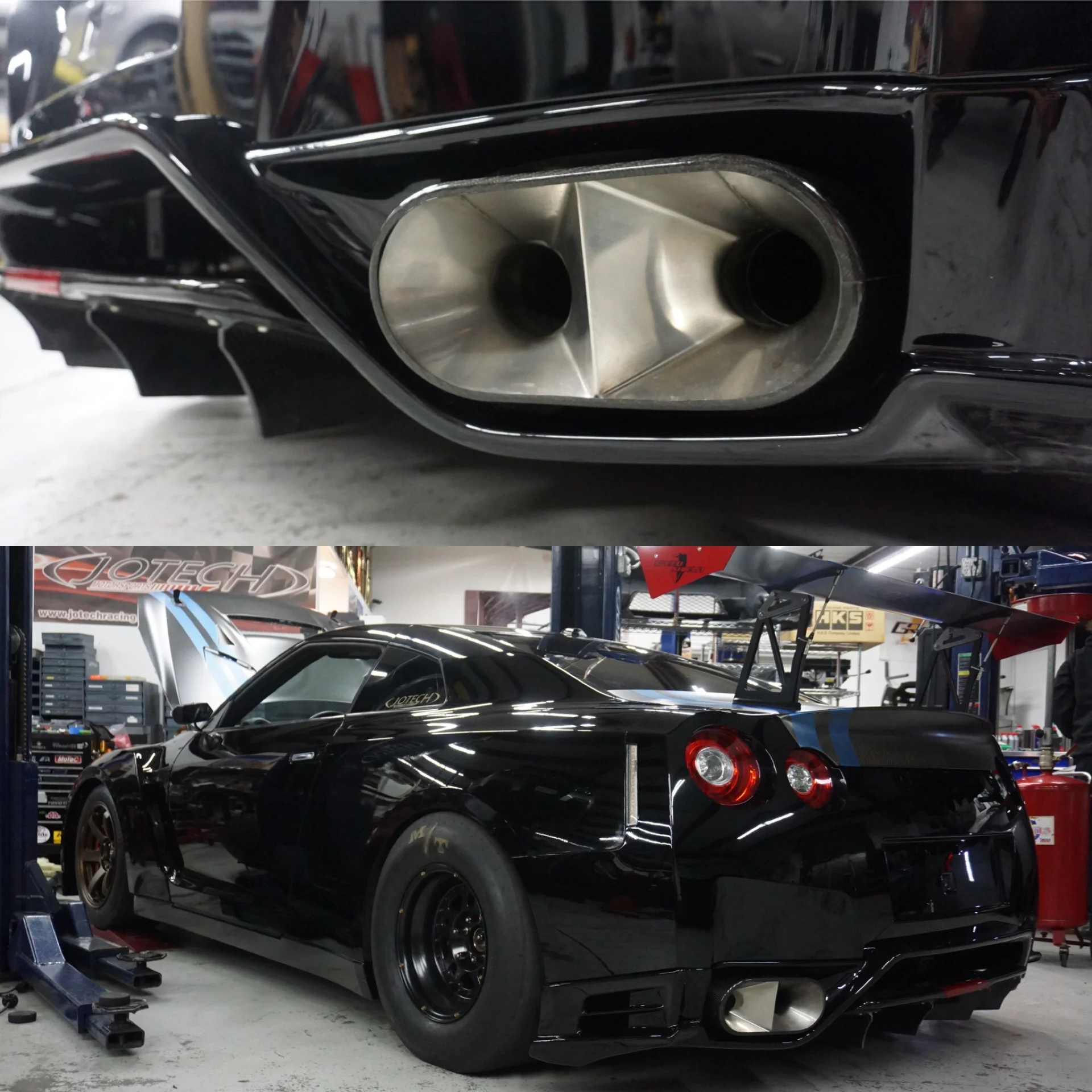

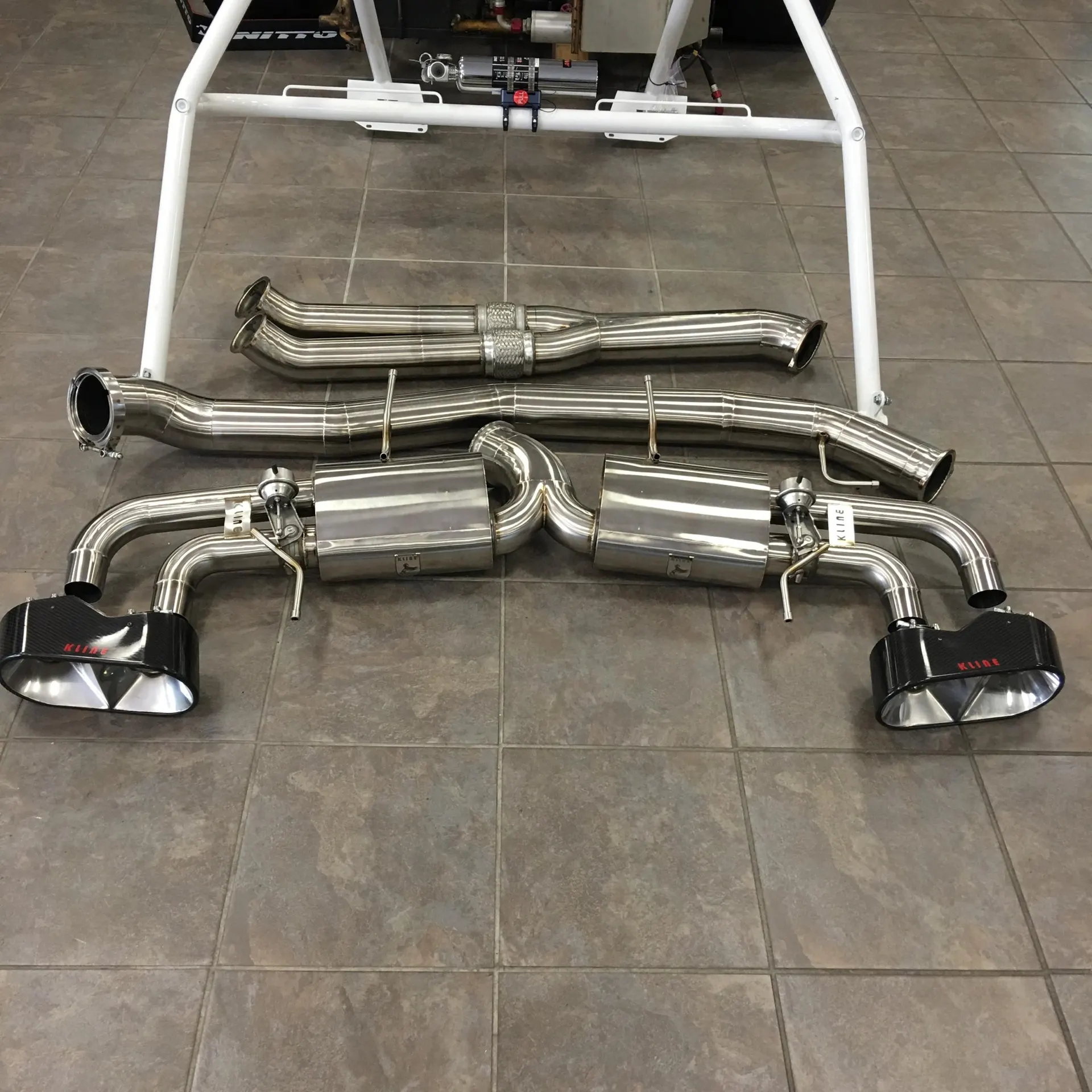

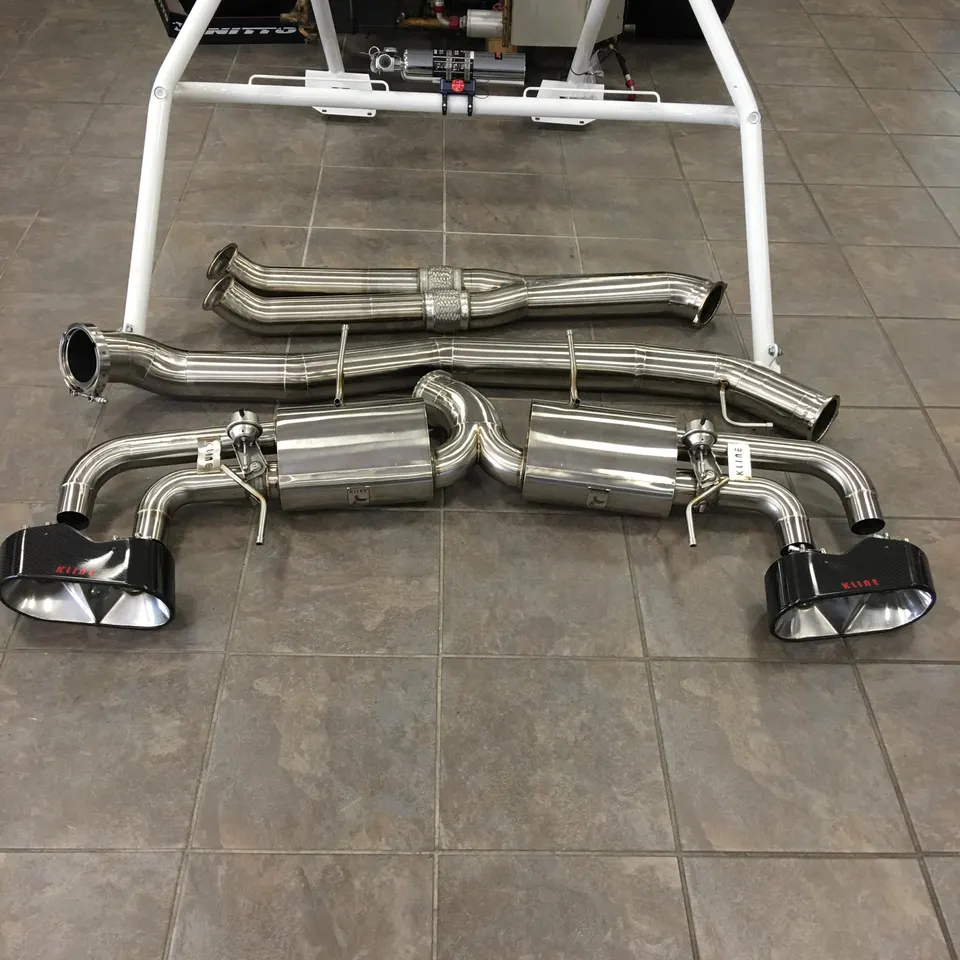

- ETS 3.5" w/ Kline 4" Complete Exhaust
Drivetrain
- Dodson Promax Clutches
- HKS Transmission Gear Kit

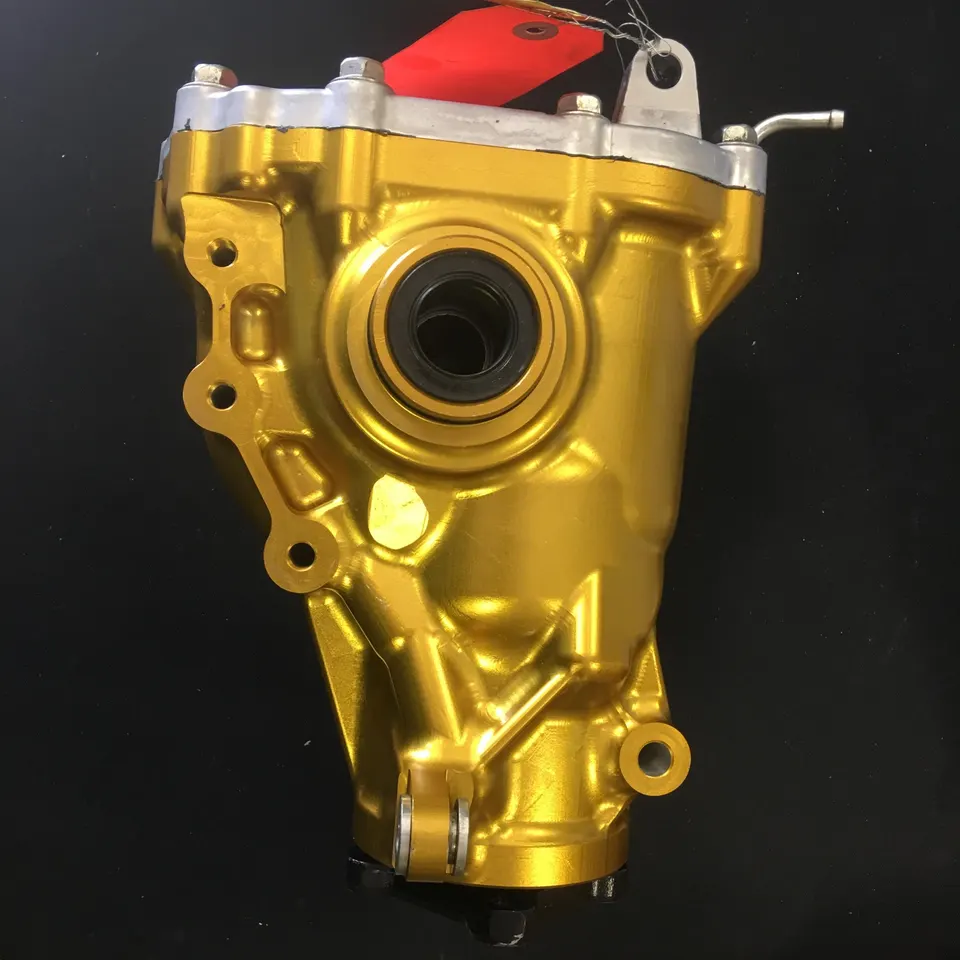

- Overtake / Drexler Front & Rear Differential
- Willall Billett front diff housing
- DSS Upgraded Rear Axles | Front Axles | DSS CF Driveshaft | DSS Upgraded front shaft

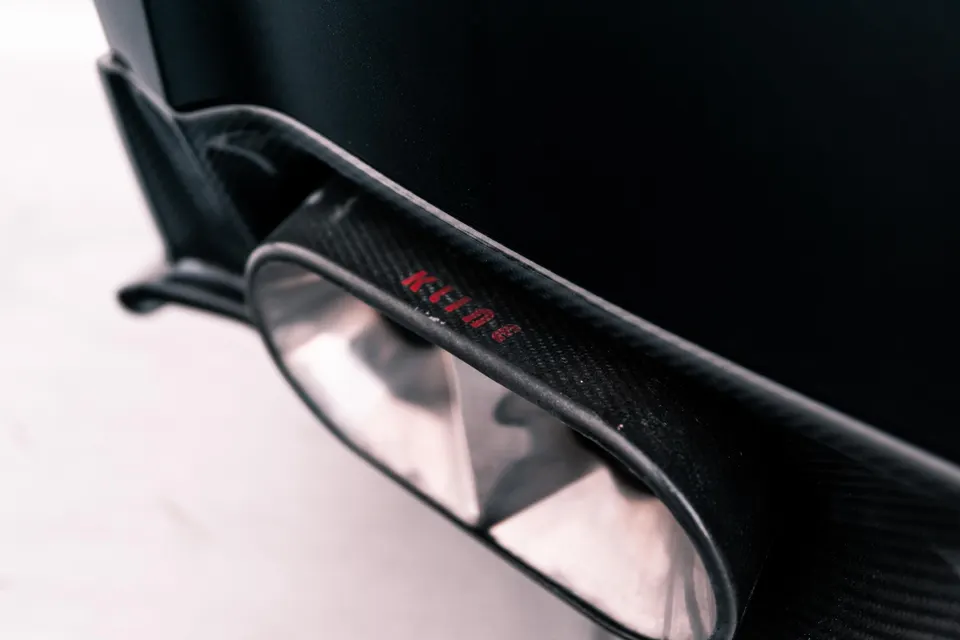

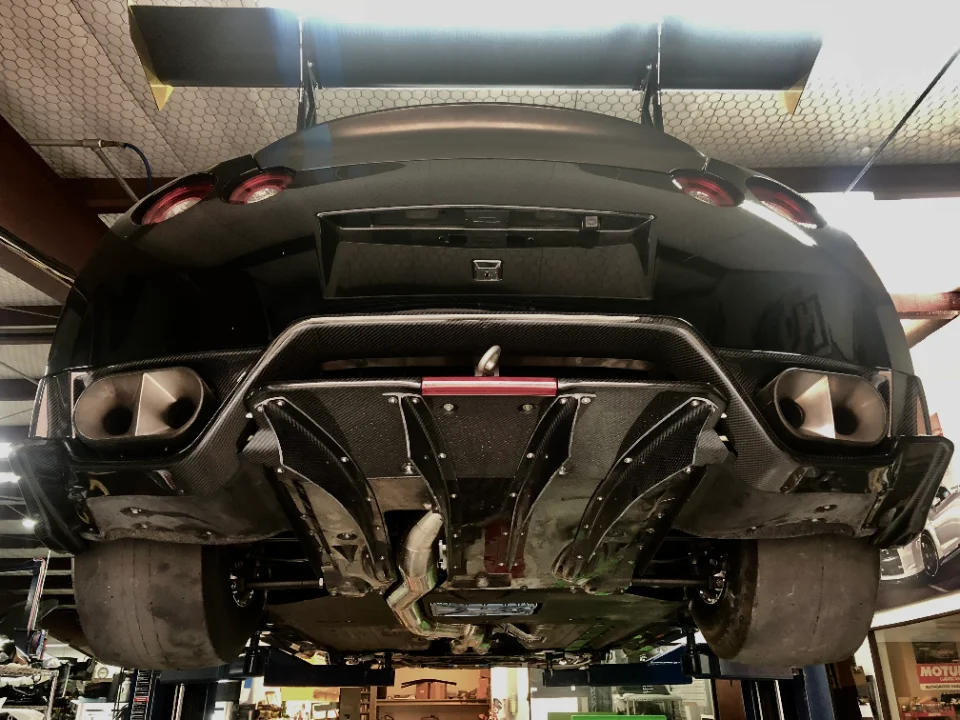

- Top Secret carbon fiber rear diffuser with blades
Electronics & Tuning

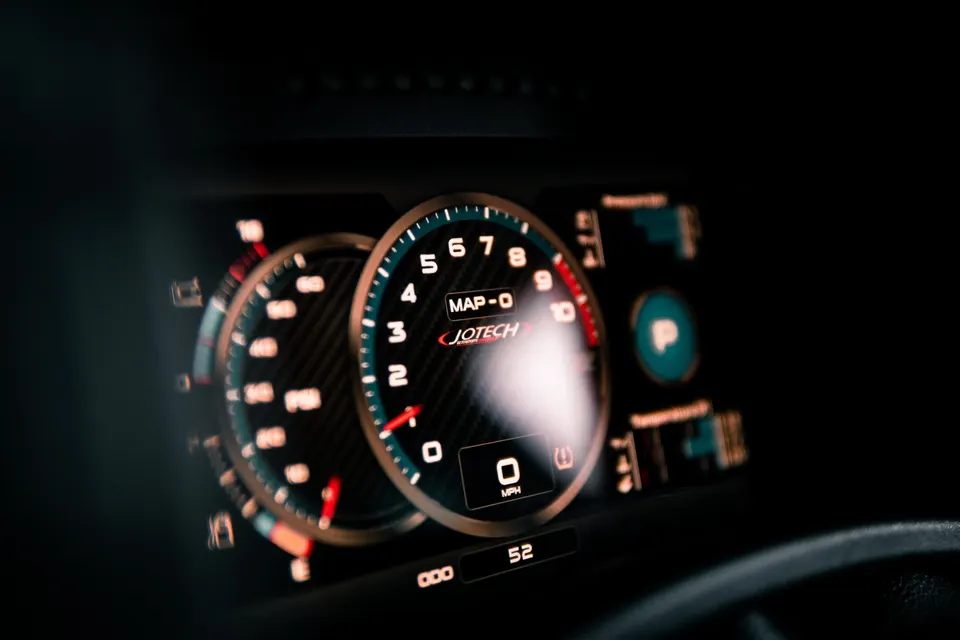

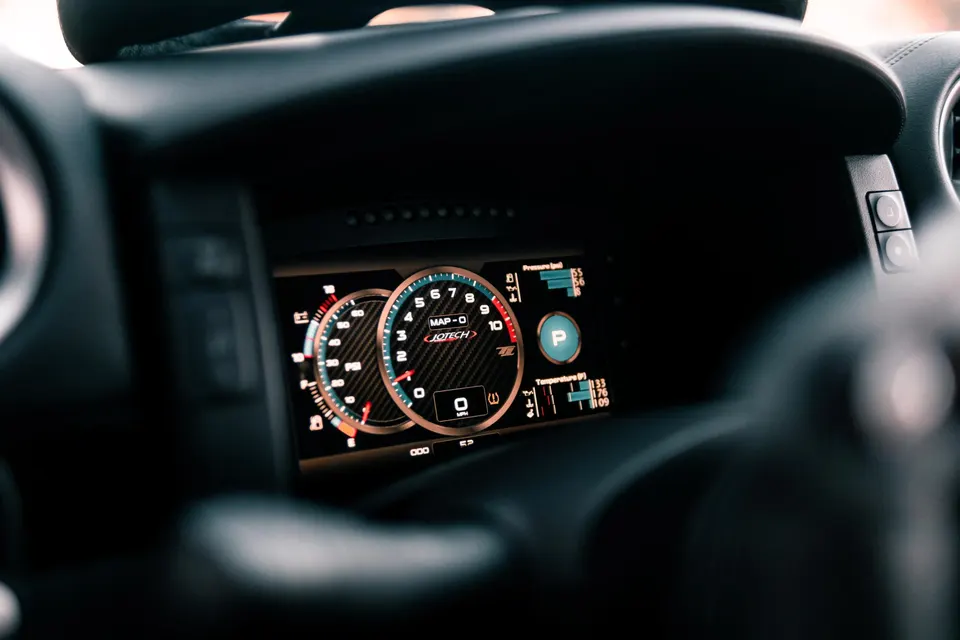

- Motec M150 w/Level3 Logging | Motec C127 Dash w/ Forged Billet Mount
- Motec Pressure Sensors, Coolant Pressure Sensor, Lambda Sensors
- HVT 6300e Coilovers (in dash adjustable)
Wheels & Chassis

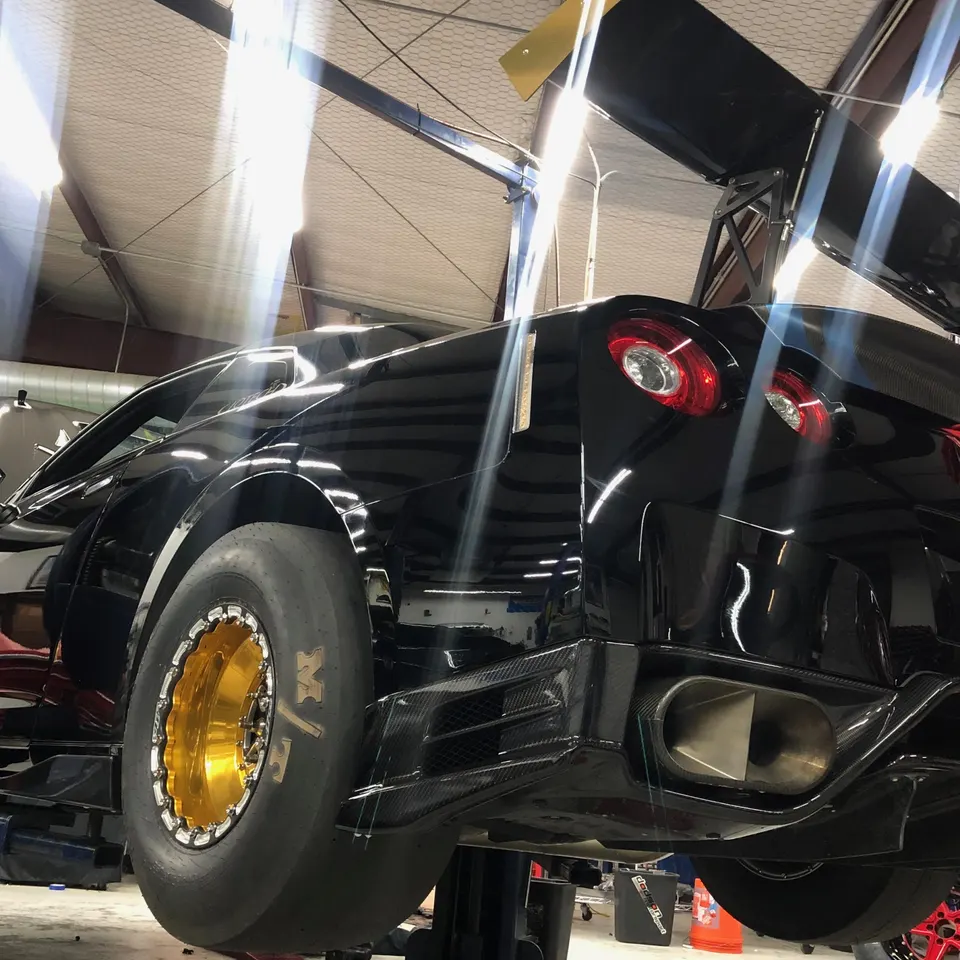

- T1R / Belak front & rear beadlocks - 17x10 & 15x11
- Titanium hardware kit (beadlock rings & wheel centers)
- Hoosier Slick 28x10.0-18
- Mickey Thompson slick 28x10.5-15w

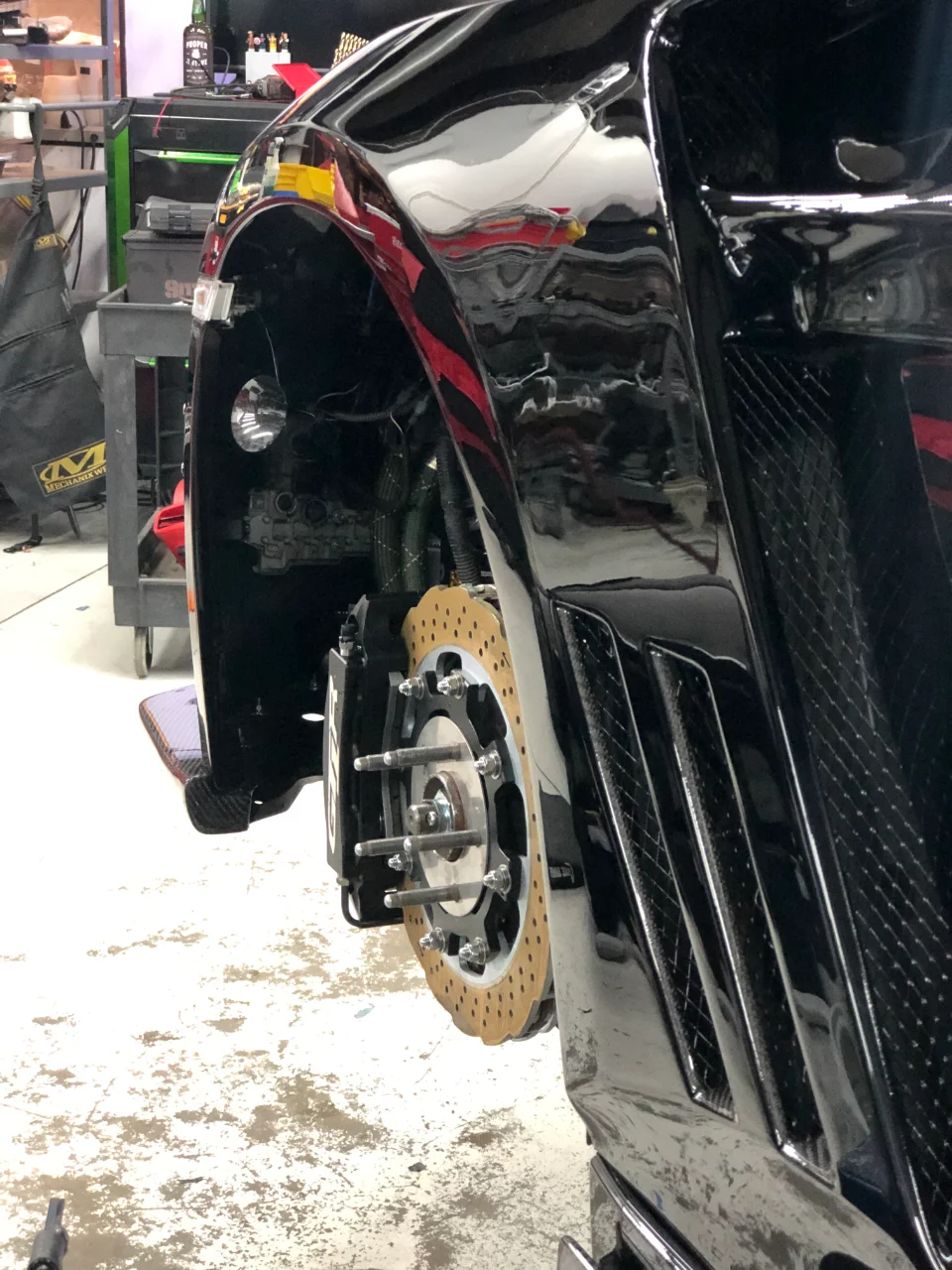

- RB Carbon Ceramic Brake Rotors
- Endless Racing Brake Pads
- SPL Billet Control Arms, Traction Bars, Camber Arms
- Wisefab front & rear suspension kit
- Forged Performance sway bars and end links

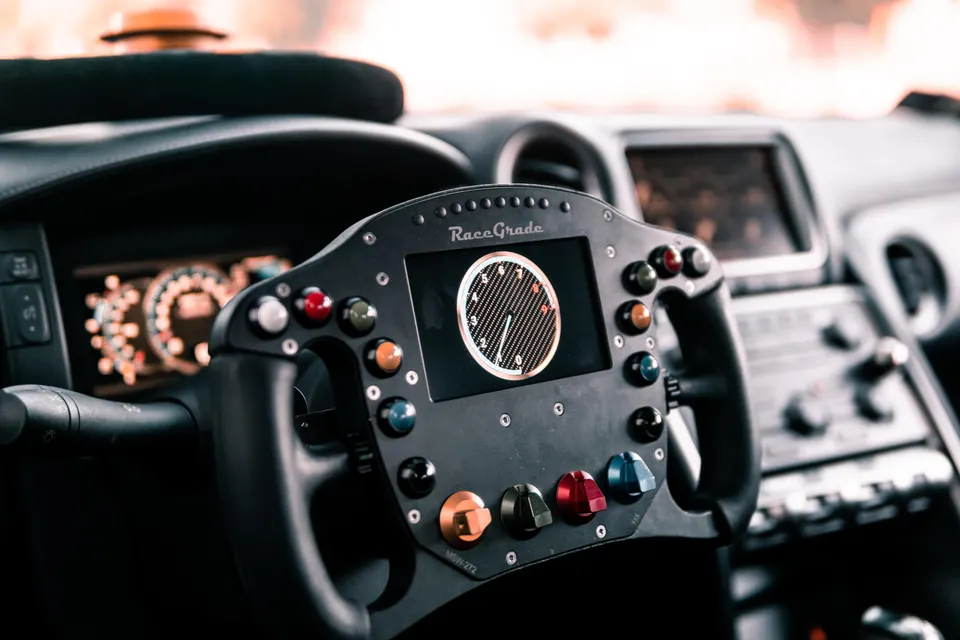

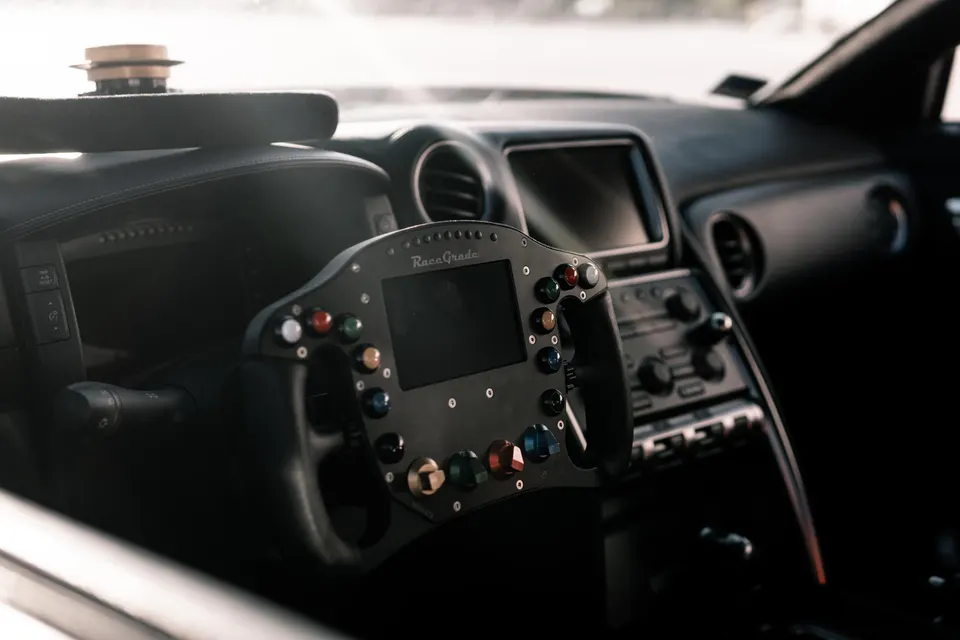

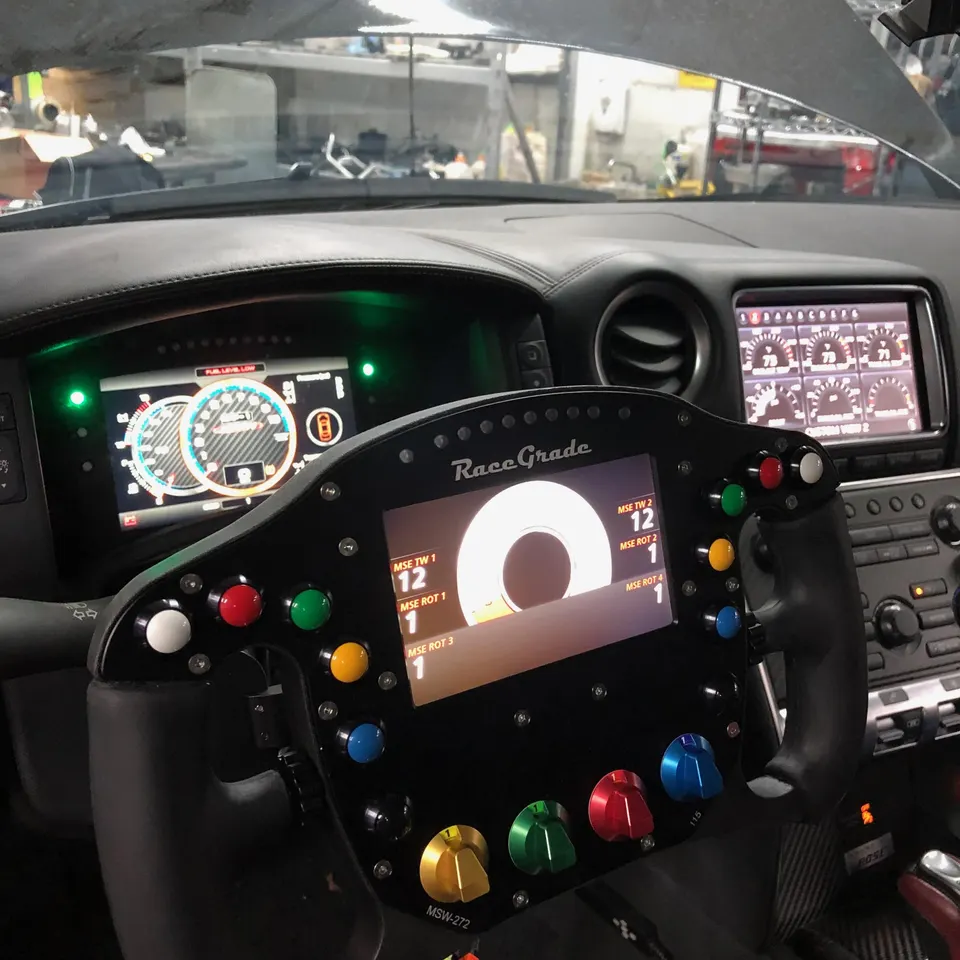

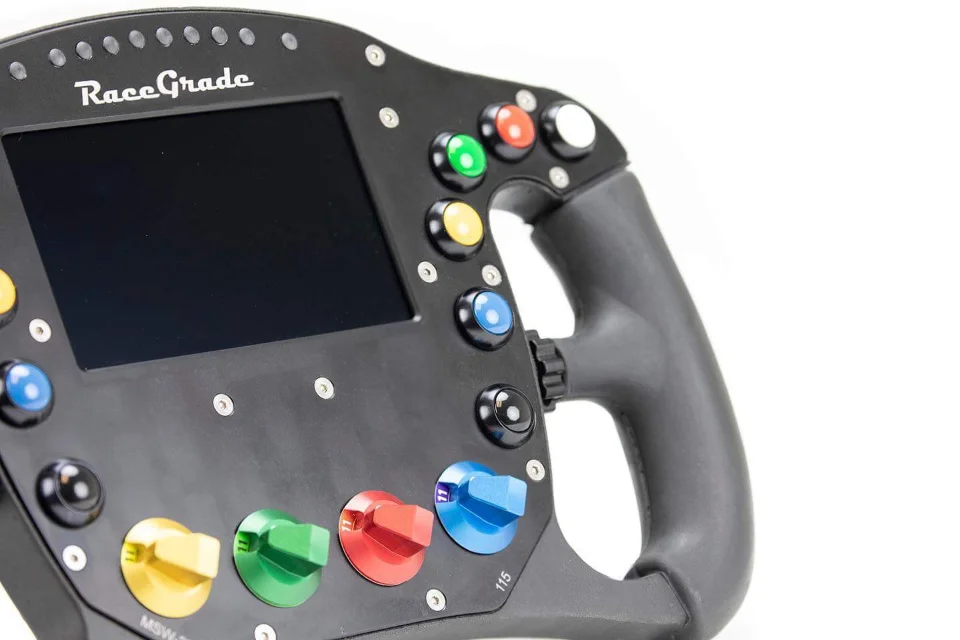

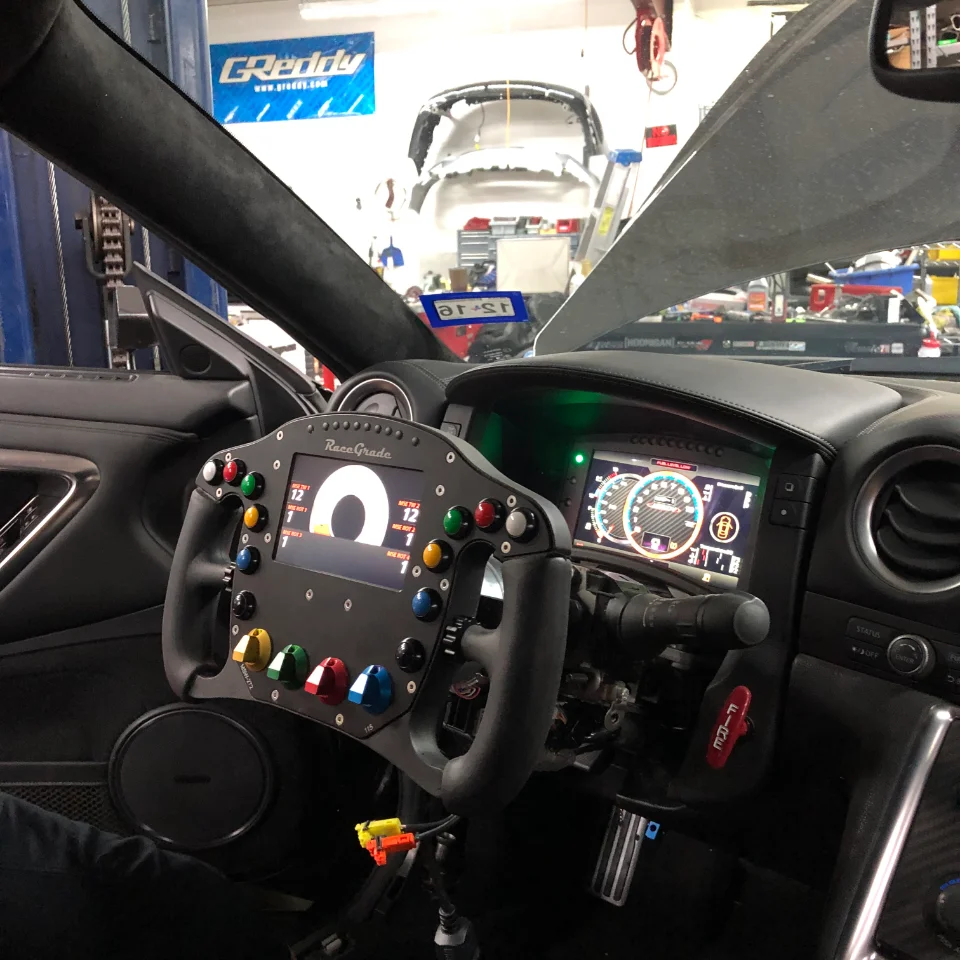

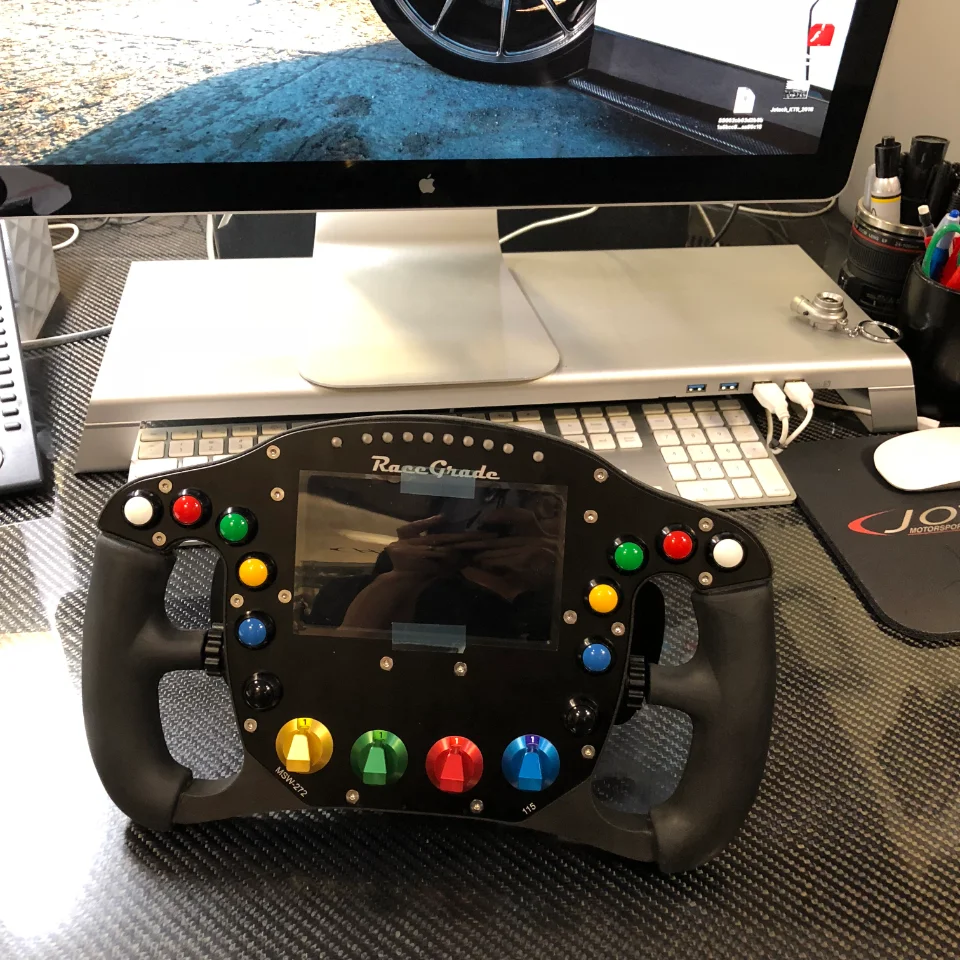

- RaceGrade MSW-272 Steering Wheel w/C125 screen

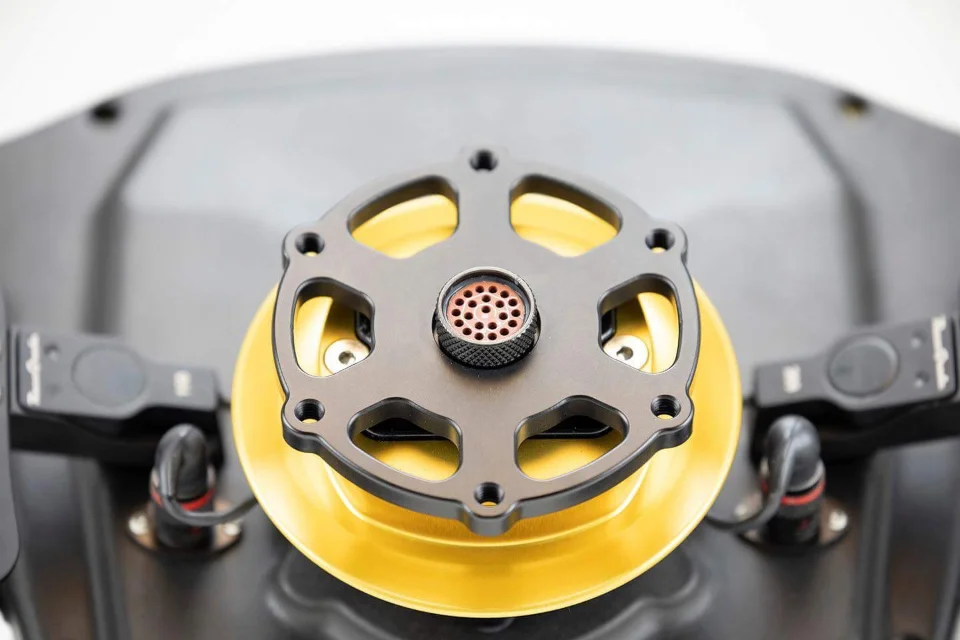

- Krontec quick release steering wheel kit
Exterior & Aero

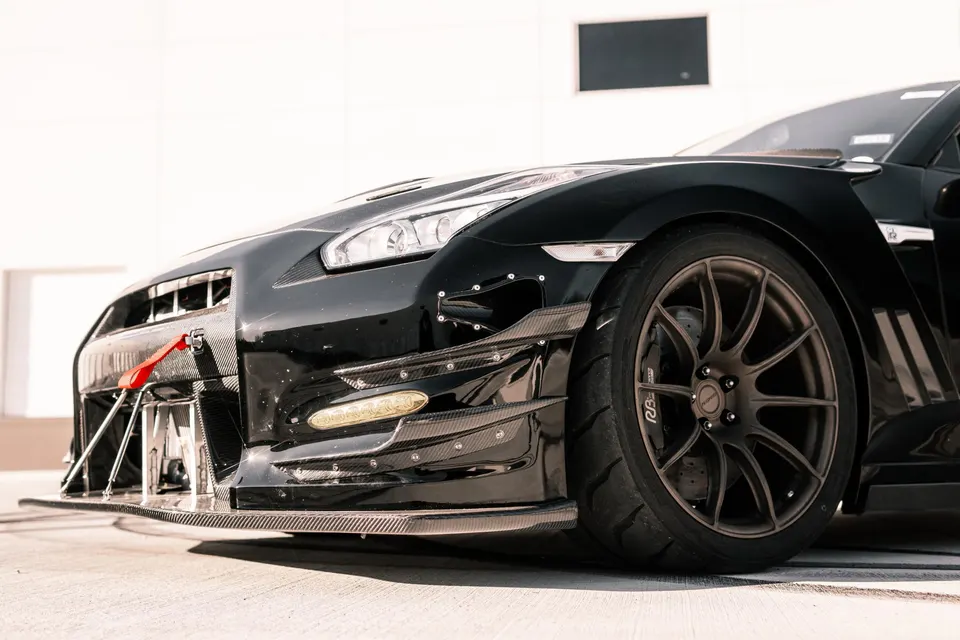

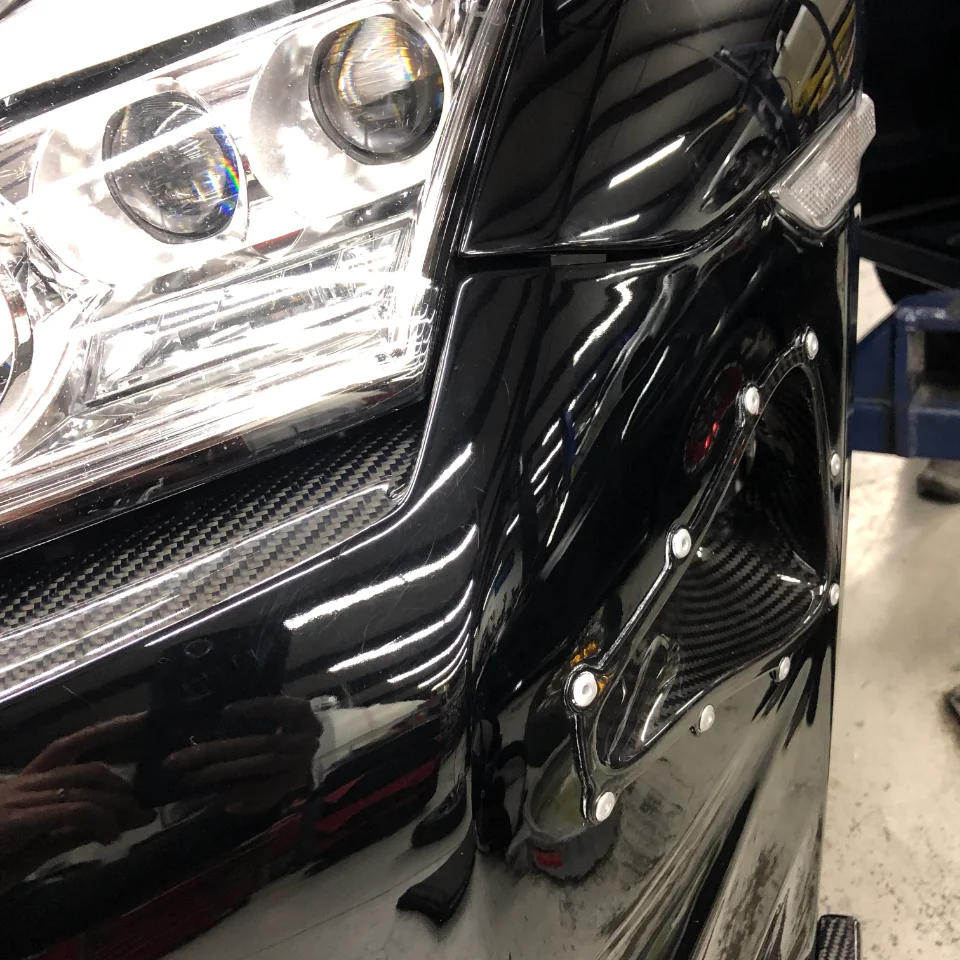

- Phoenix Power carbon fiber front bumper
- Top Secret carbon fiber side splitters
- Varis carbon fiber hood
- Overtake carbon fiber hood gurney flap
- Auto Select carbon fiber front fenders
- AMS carbon fiber rear trunk
- AMS carbon fiber roof

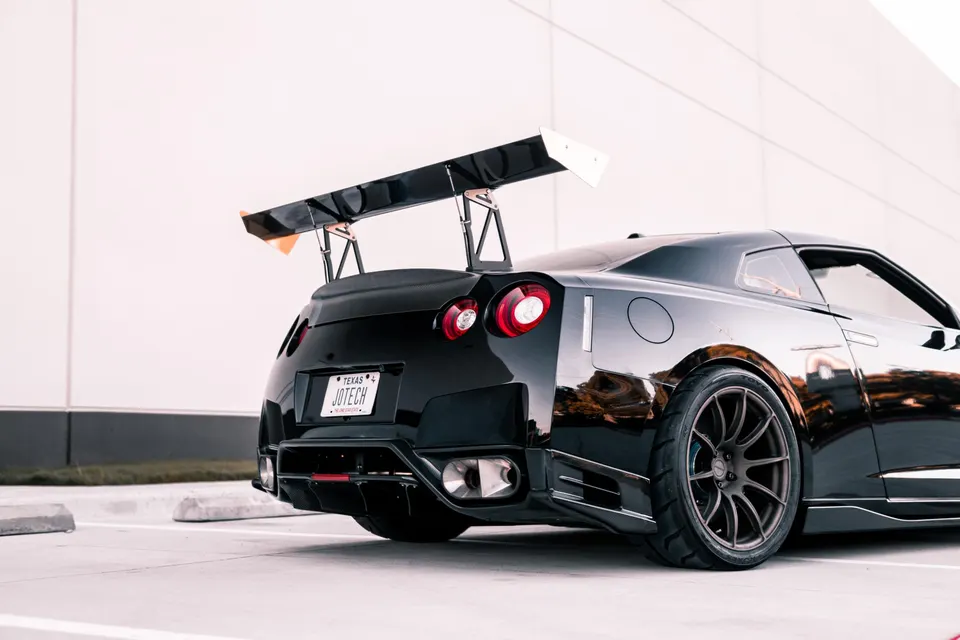

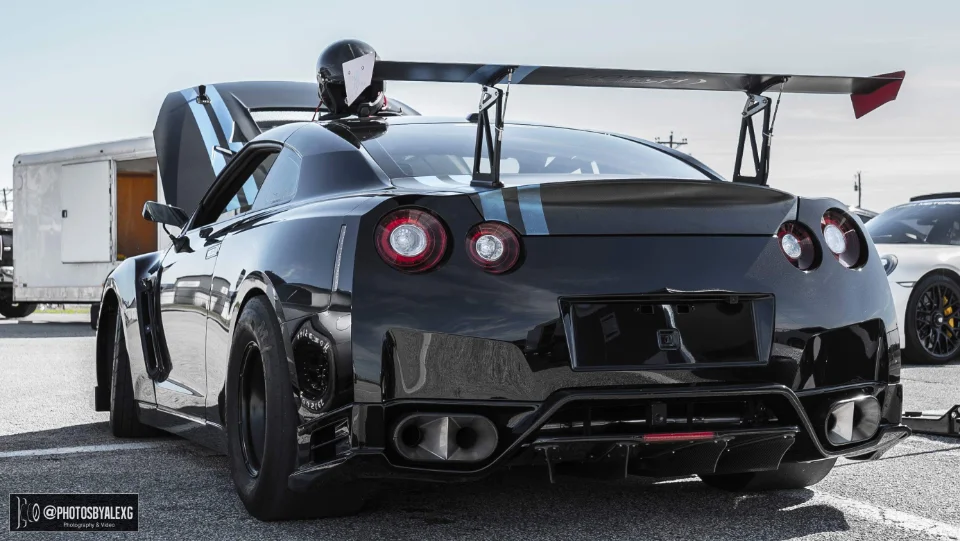

- Aeromotions R.Dynamic rear wing
- T1R parachute kit w/CO2 launcher
Interior & Safety

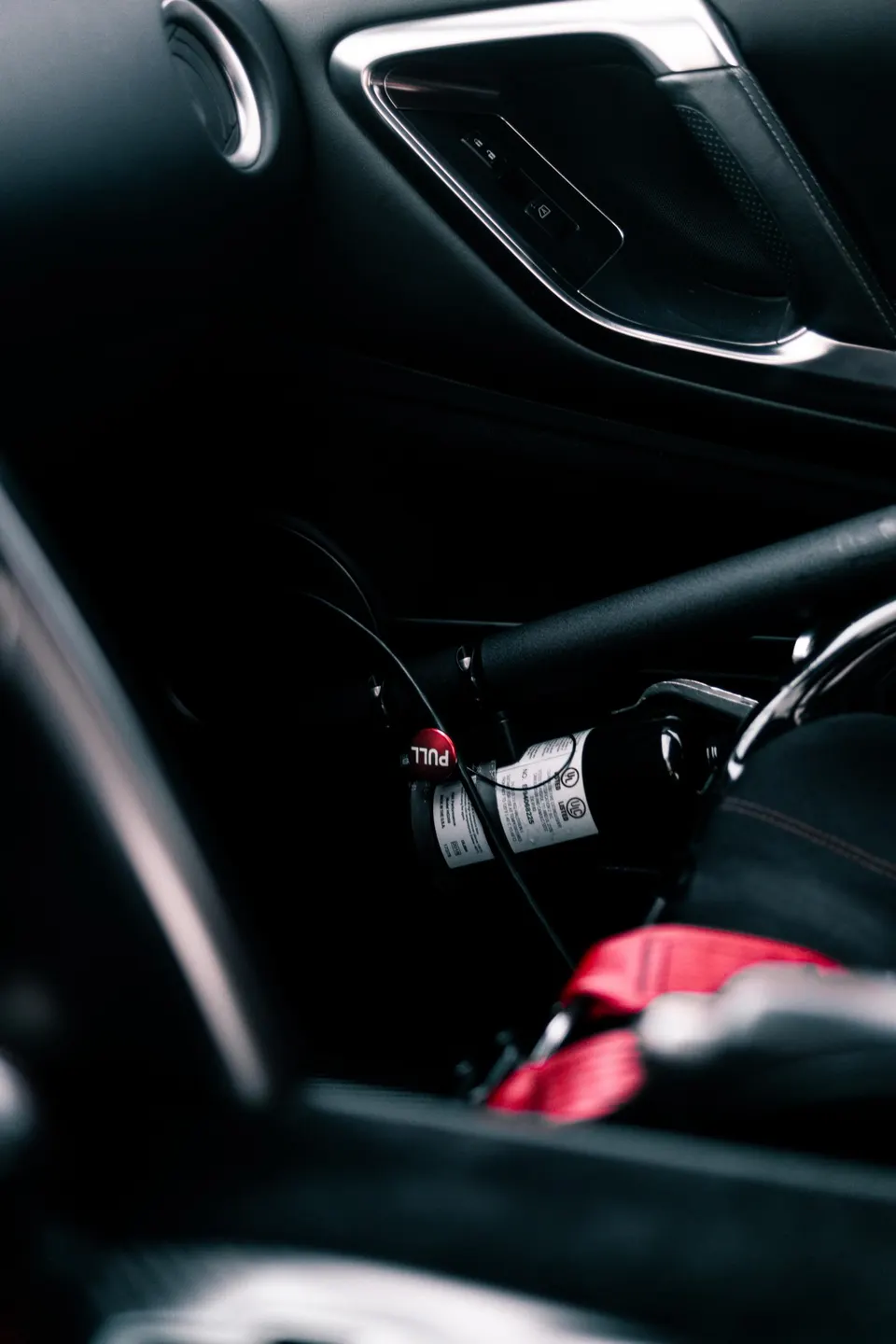

- Halon Fire Extinguisher & Joe’s Quick Release Billet Mount

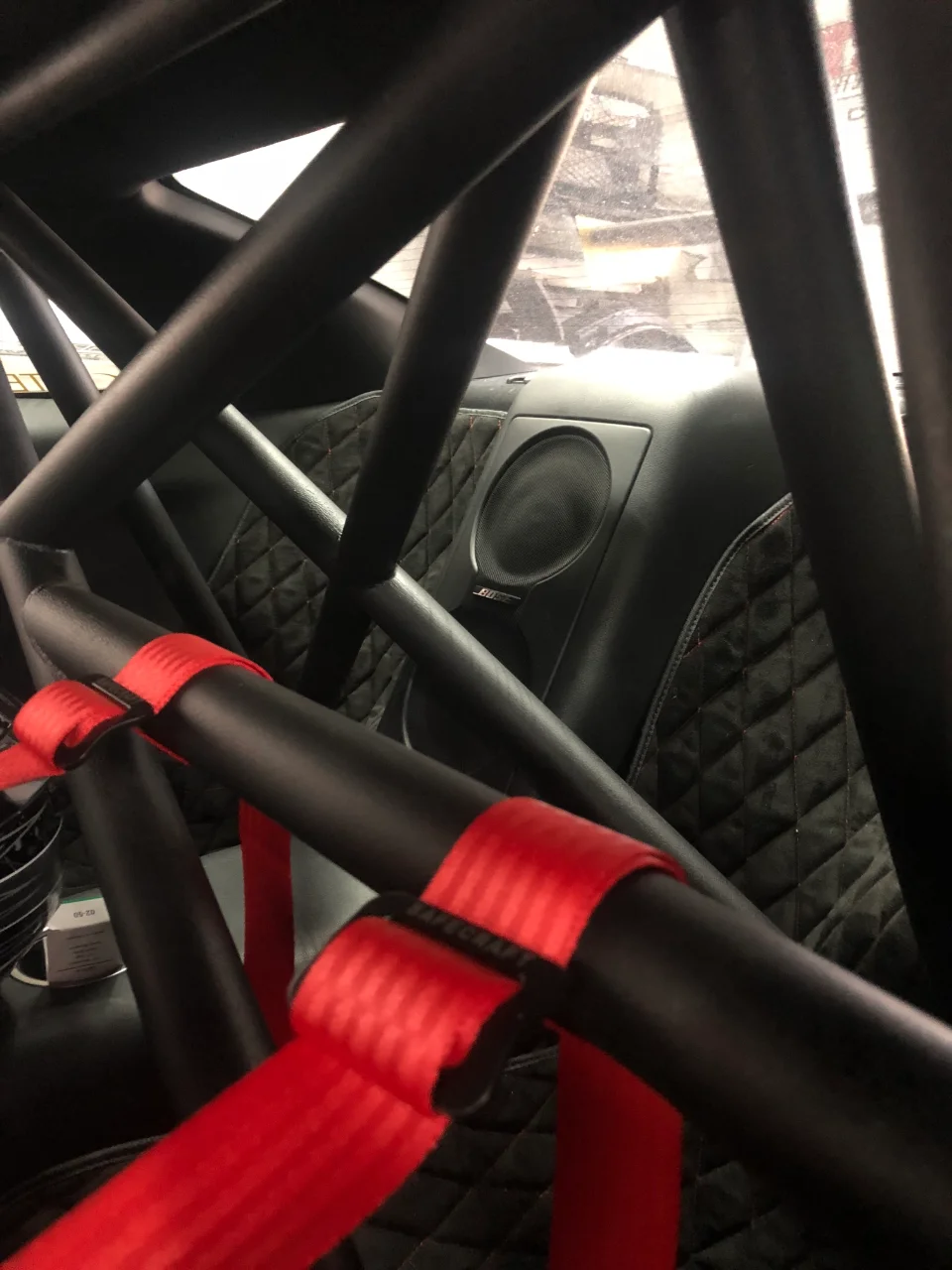

- Jotech Motorsports 6 pt roll cage w/removable door bars

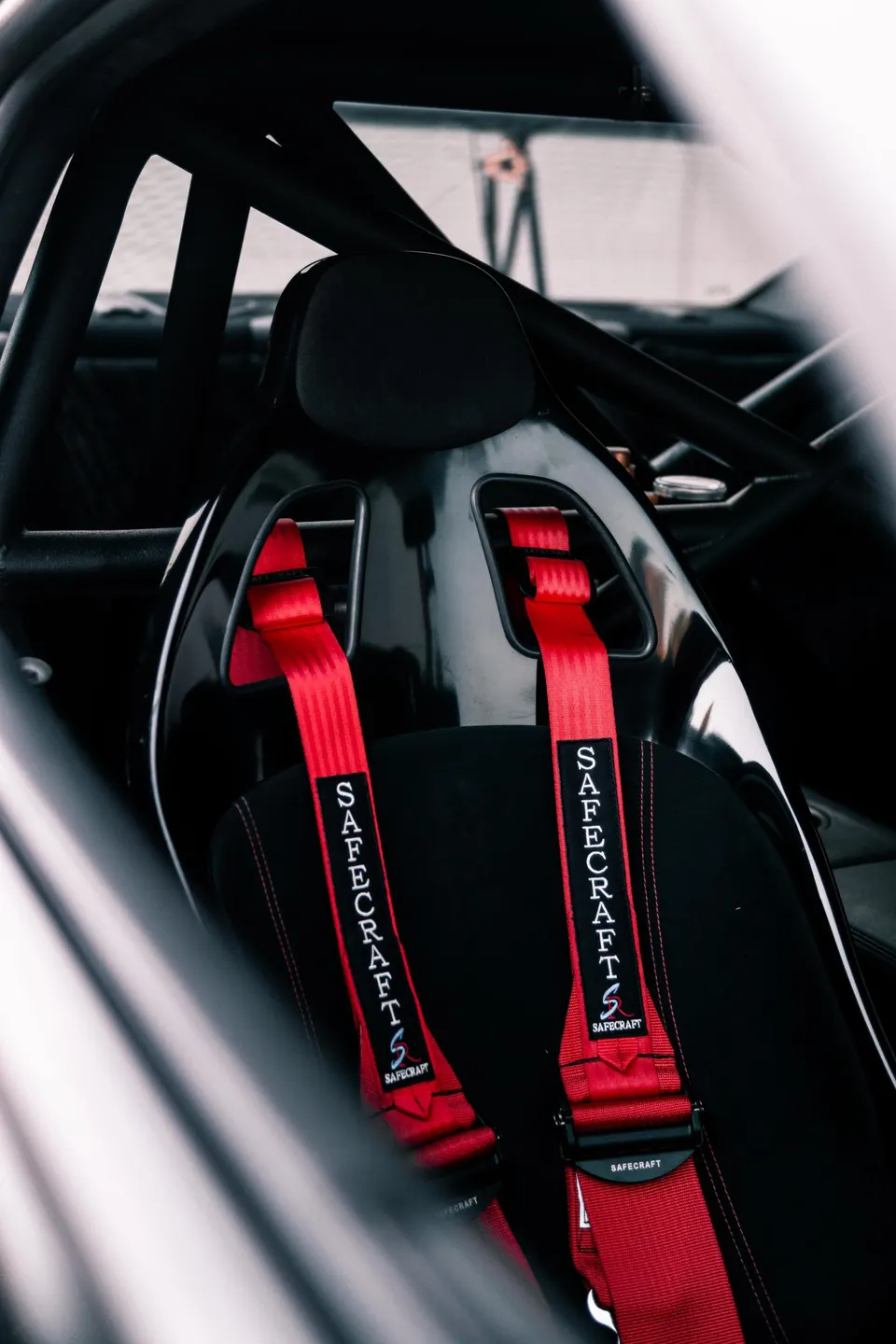

- Tillett B6 seats
- Safecraft 6pt harness
- Custom rear seat delete
Fuel System
- Alpha Twin Brushless Fuel System
- Alpha Fuel Rails w/ Fuelab Fuel Pressure Regulator
- ID1050x Primary Injectors | 1700x Secondary Injectors
- ID Fuel Filter | Jotech Fuel Pressure Monitoring Kit
- Jotech Custom Flex-Fuel Kit & Tune (E85 / 93OCT / E98 / VP Import)
Supporting Mods

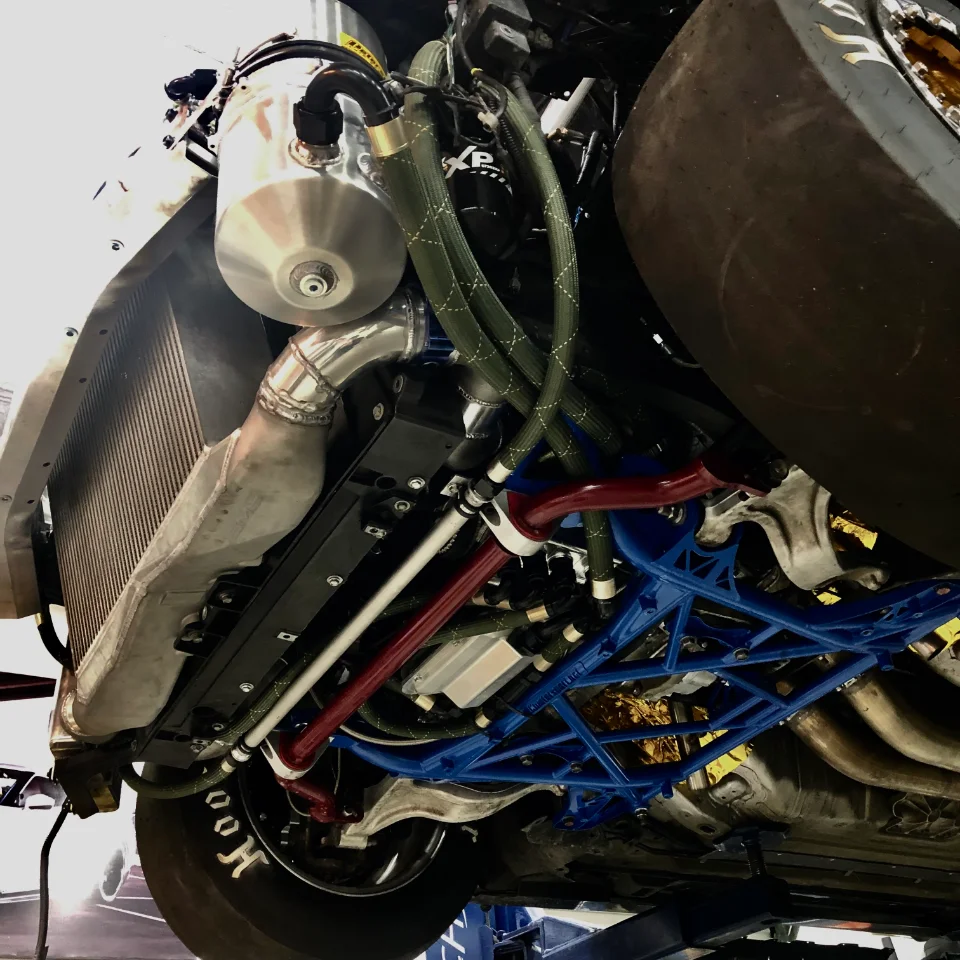

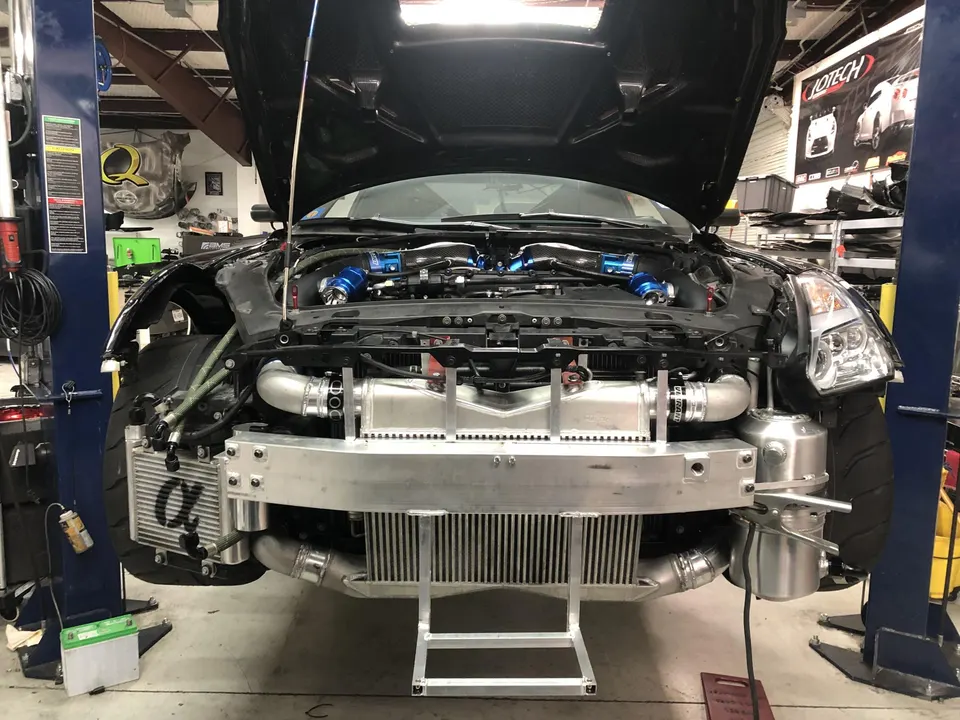

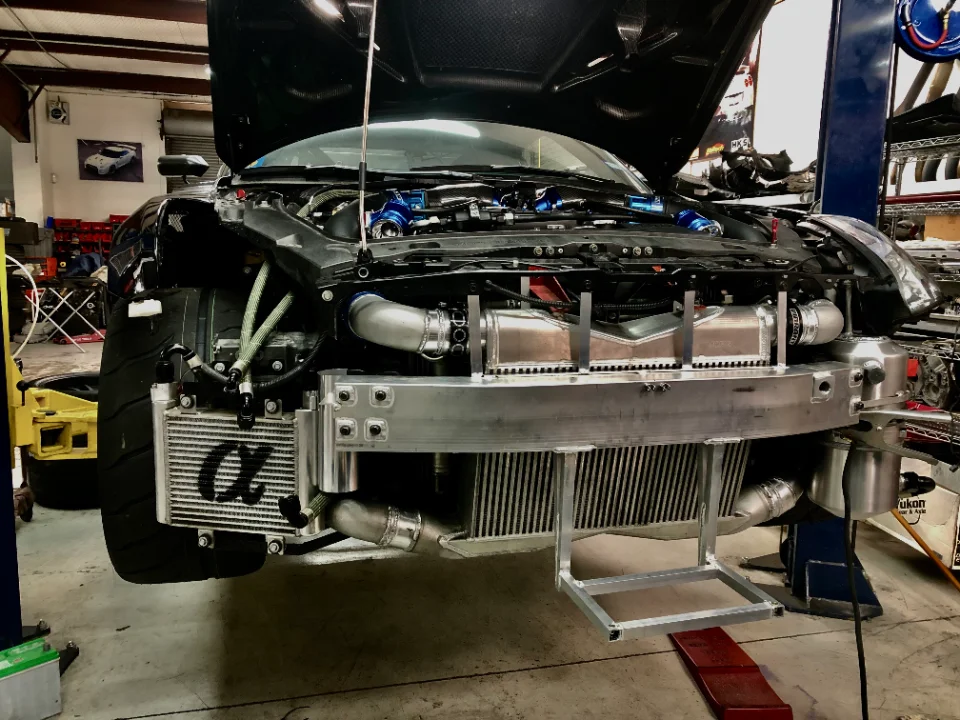

- Alpha Race-X FMIC w/ Jotech custom 3" short hardpipe / Vibrant Vanjen clamps
- Jotech Custom Battery Cut-Off Switch

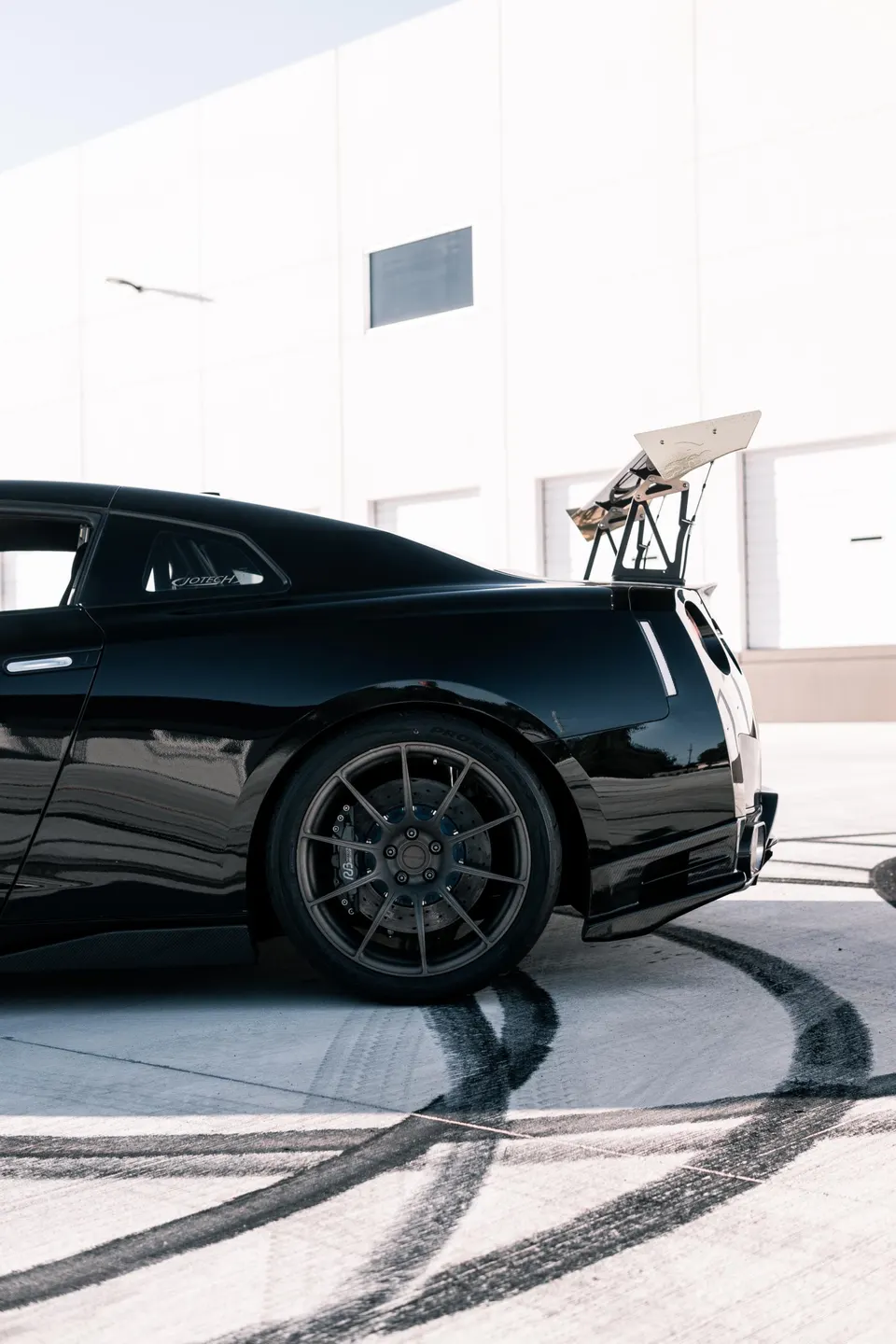

- Finspeed F11-RT 20x11 w/ Toyo R888R - 315/30ZR20
- Amuse Titanium Lug Nuts

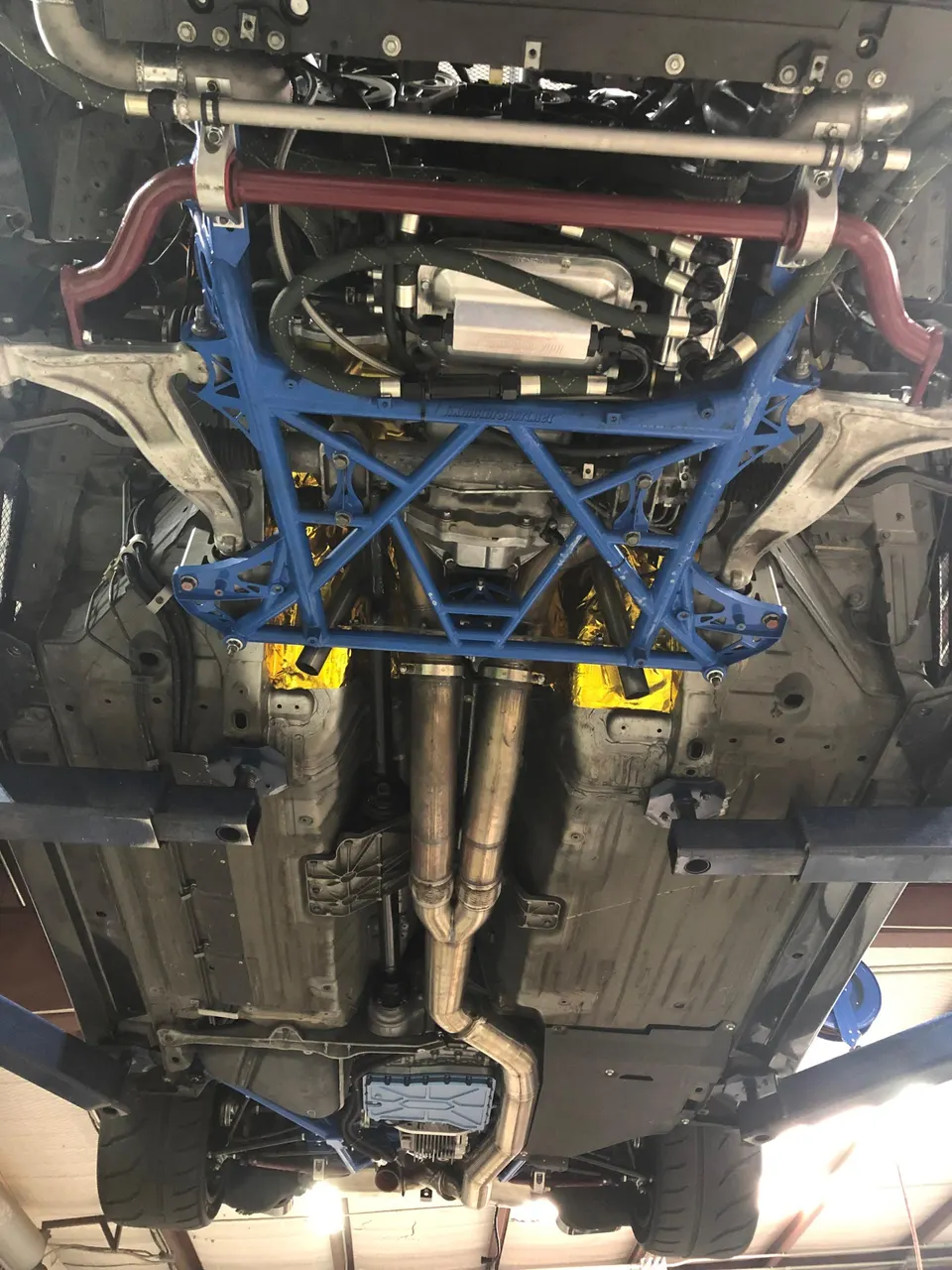

- AK Motorsports front & rear subframe - powder coated blue
