Stage 6
Stage

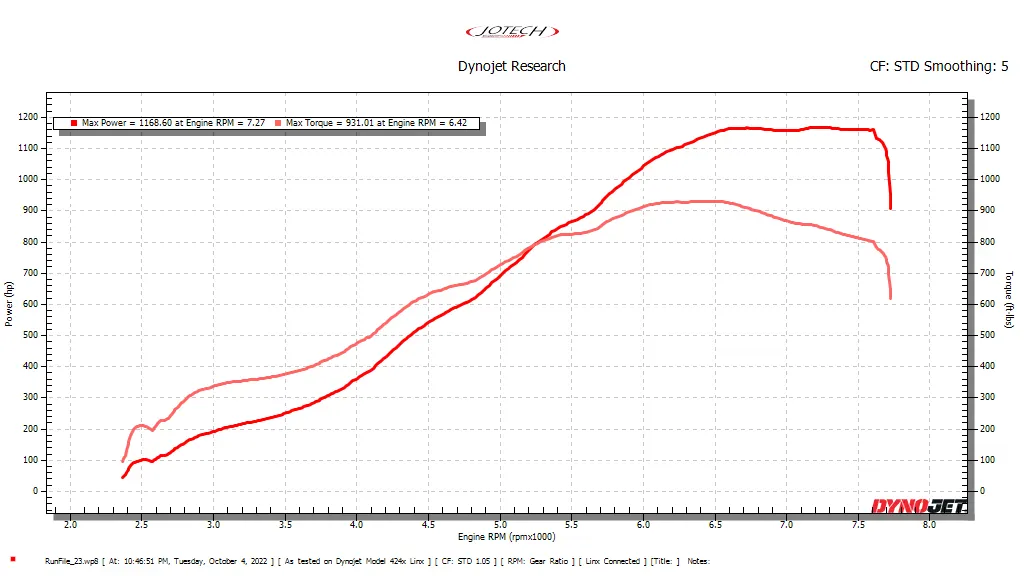

1,169 WHP
Wheel HP
931 lb-ft
Torque
WAYNE JONES
Owner
Build sheet
Engine

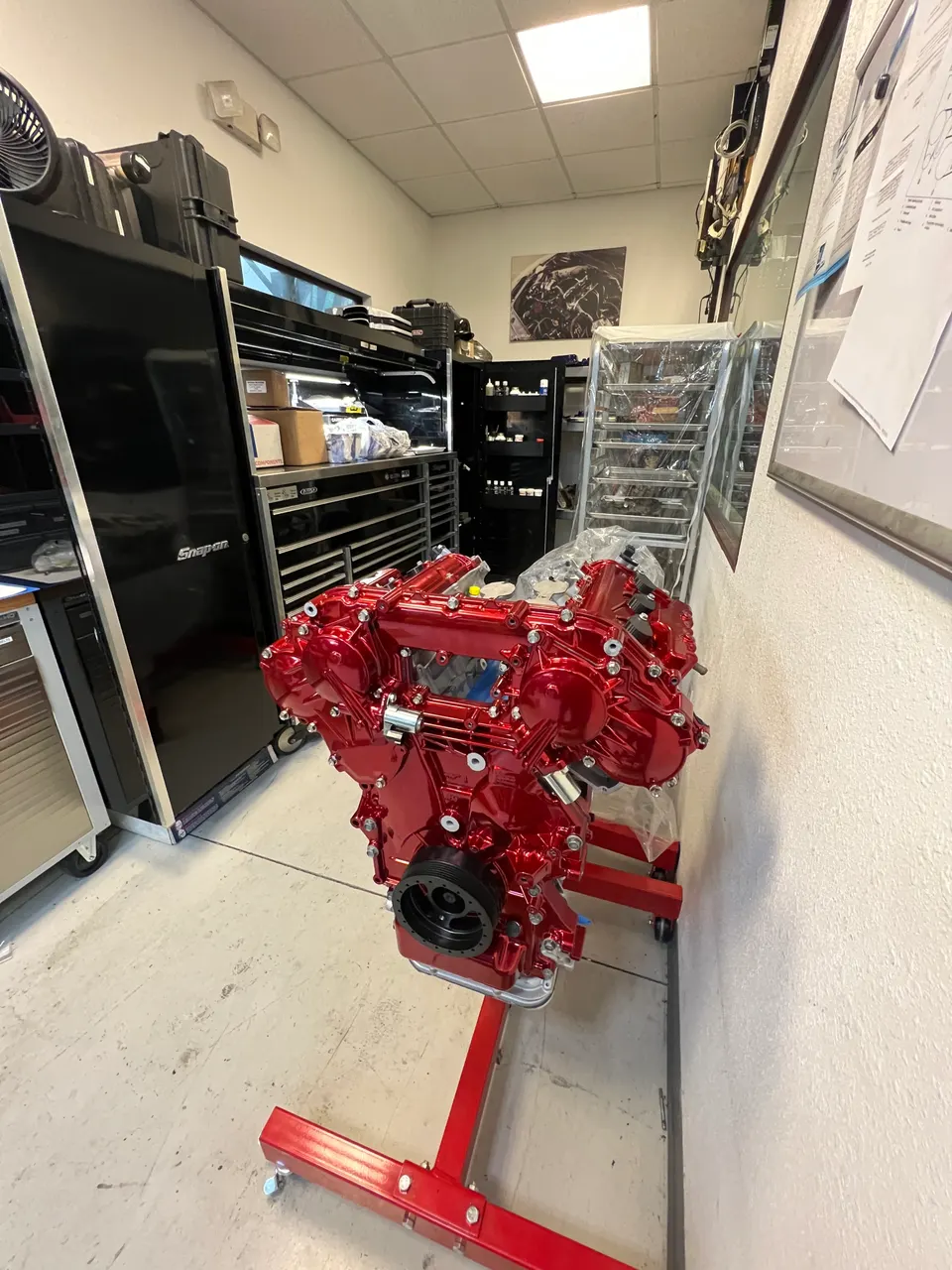

- Jotech 3.8 Liter Fully-Built Engine(Sonny Bryant billet stroker crank, Jotech spec Carrillo rods, Jotech spec Mahle pistons)
- Ferrea valvetrain
- Titaniumworks Billet Oil Pan
- ATI Crank Pulley
- PRL Billet Cover
- Greddy DCT Transmission Oil Cooler Kit

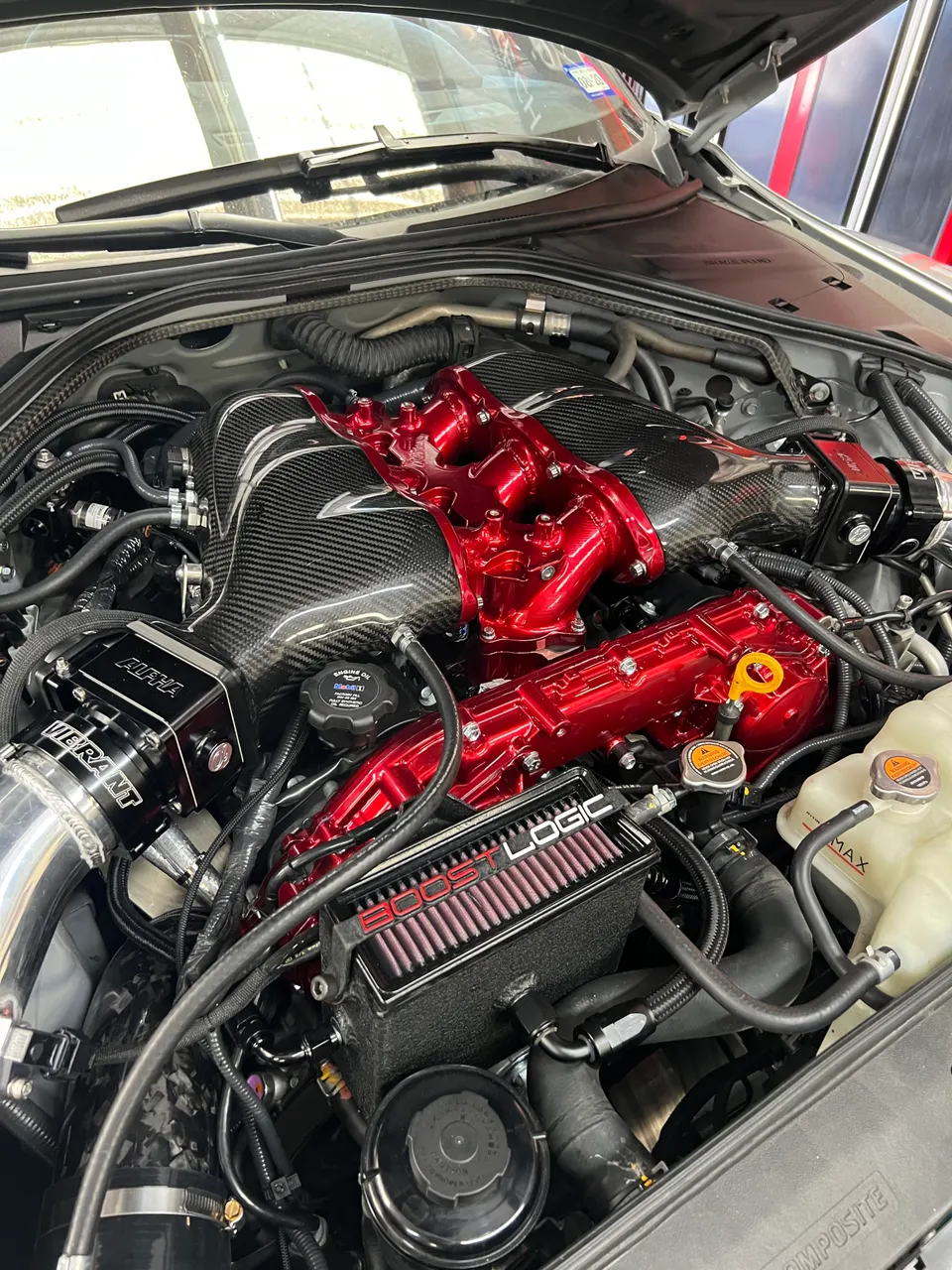

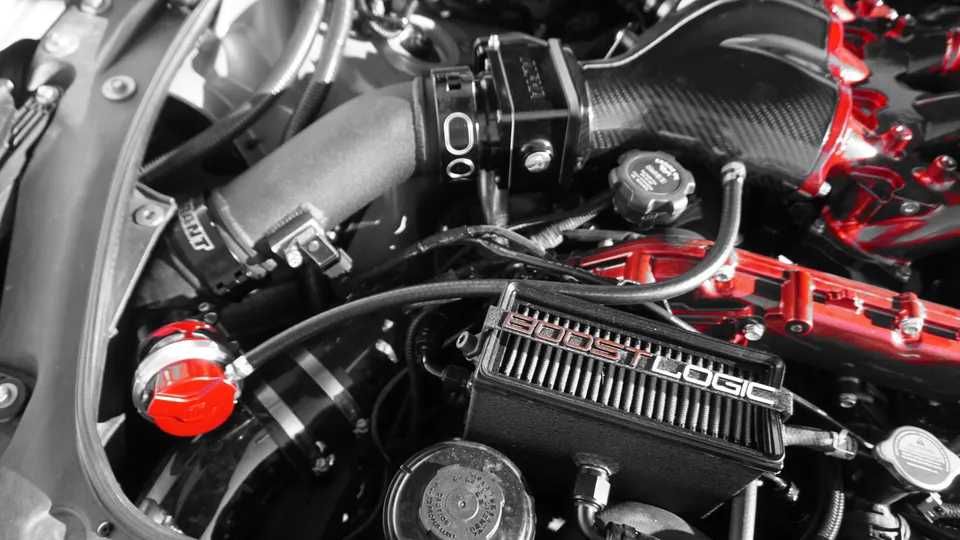

Induction

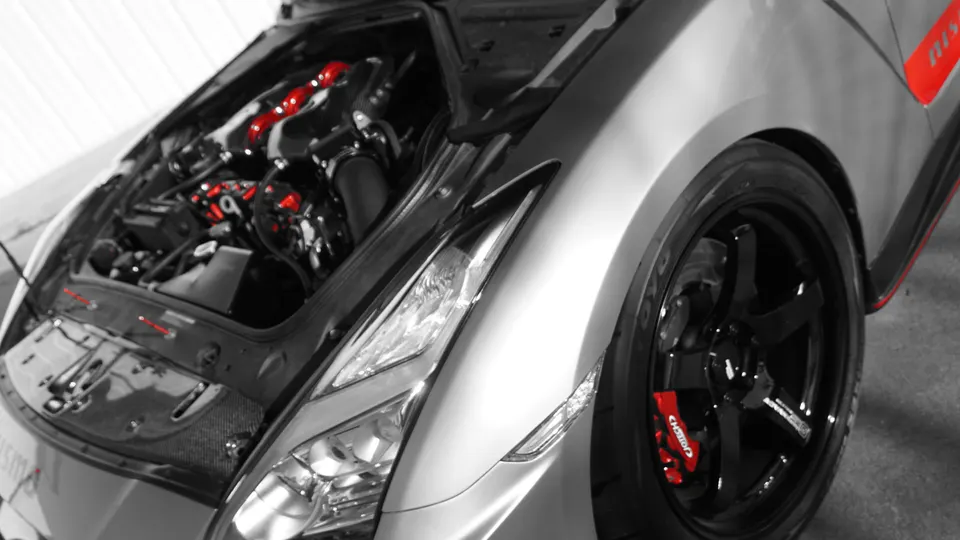

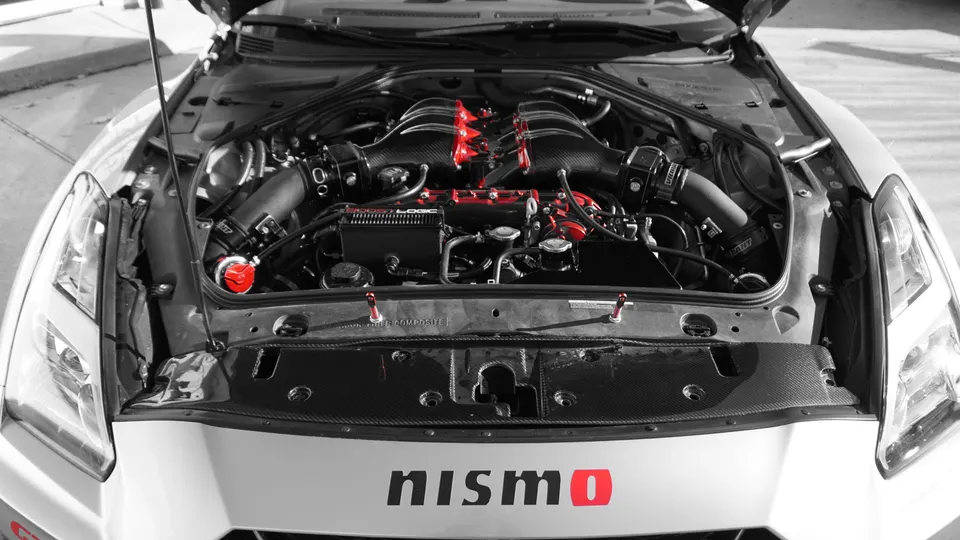

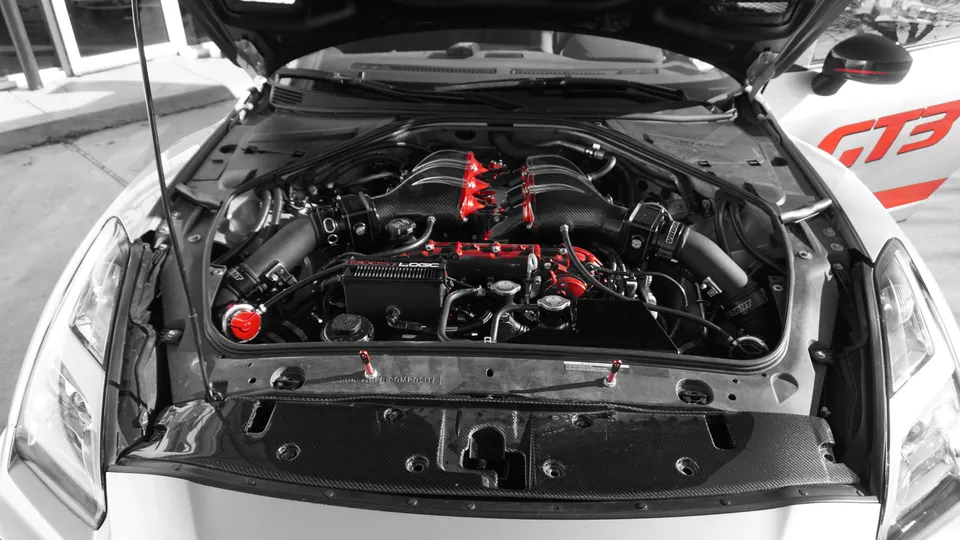

- Alpha Carbon Intake Manifold w/ 3rd Fuel Rail - coated Candy Red
- AT Power Throttle Bodies w/vanjens
- Jotech Dual 3.5” Air Intakes
- T1 Trans Overflow Catch Can
Turbo & Boost
- Alpha 14 Twin Turbo Kit
- 3.5” downpipes
- Tial MVR wastegates
- ETS Super Race Front Mount Intercooler Kit

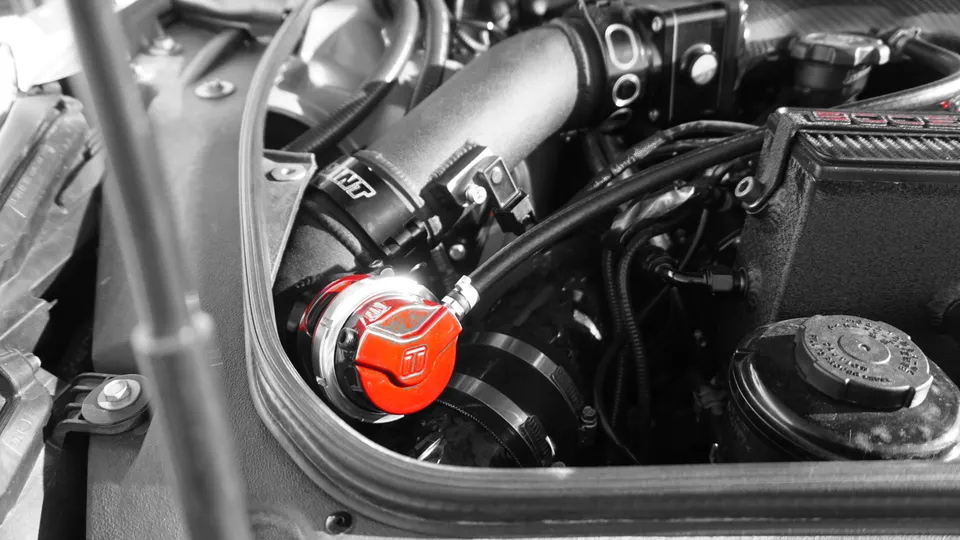

- Tial QRJ Blow Off Valves
- Jotech Custom I/C Piping powdercoated Candy Red with Vibrant Vanjen Clamps

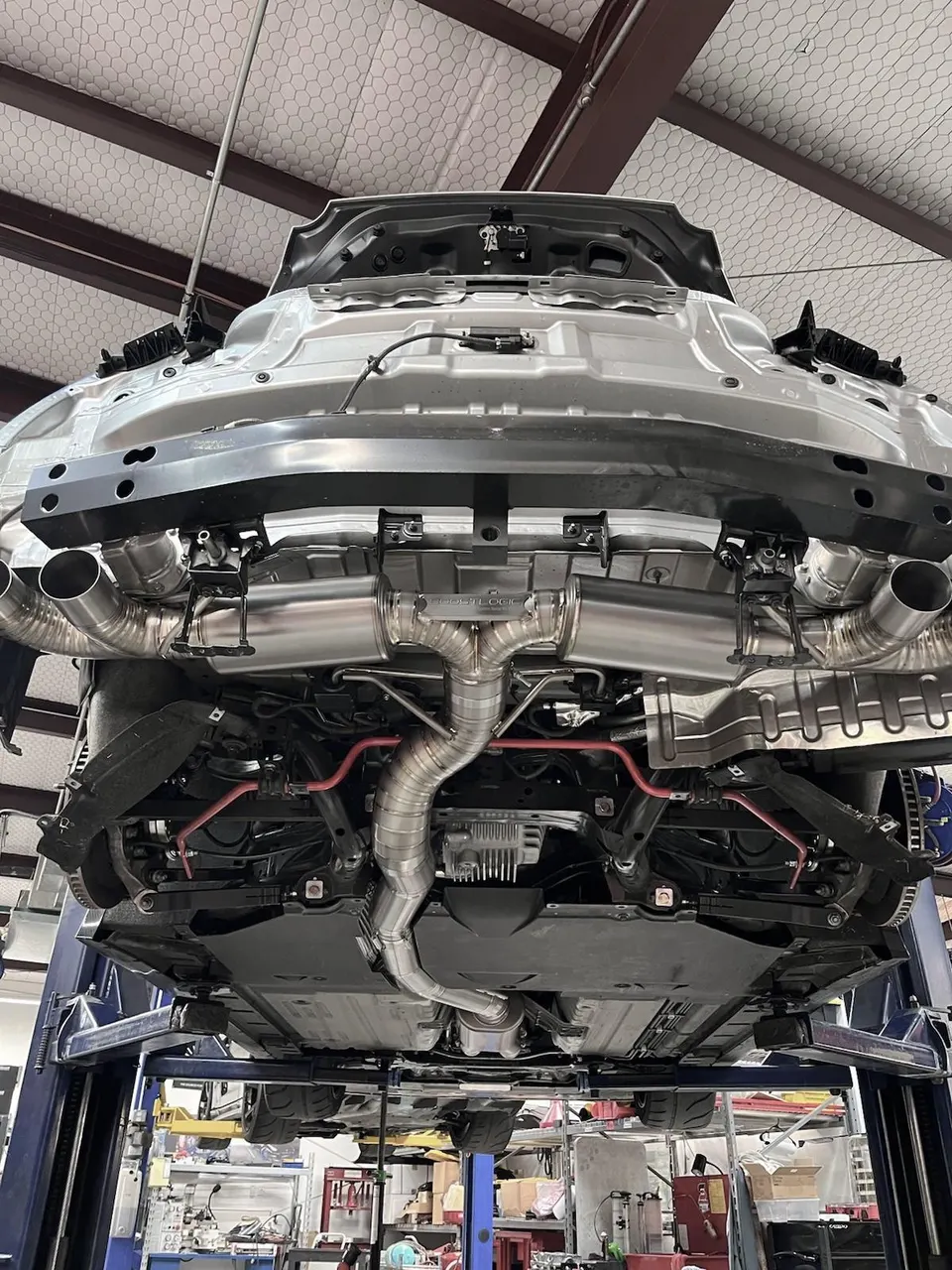

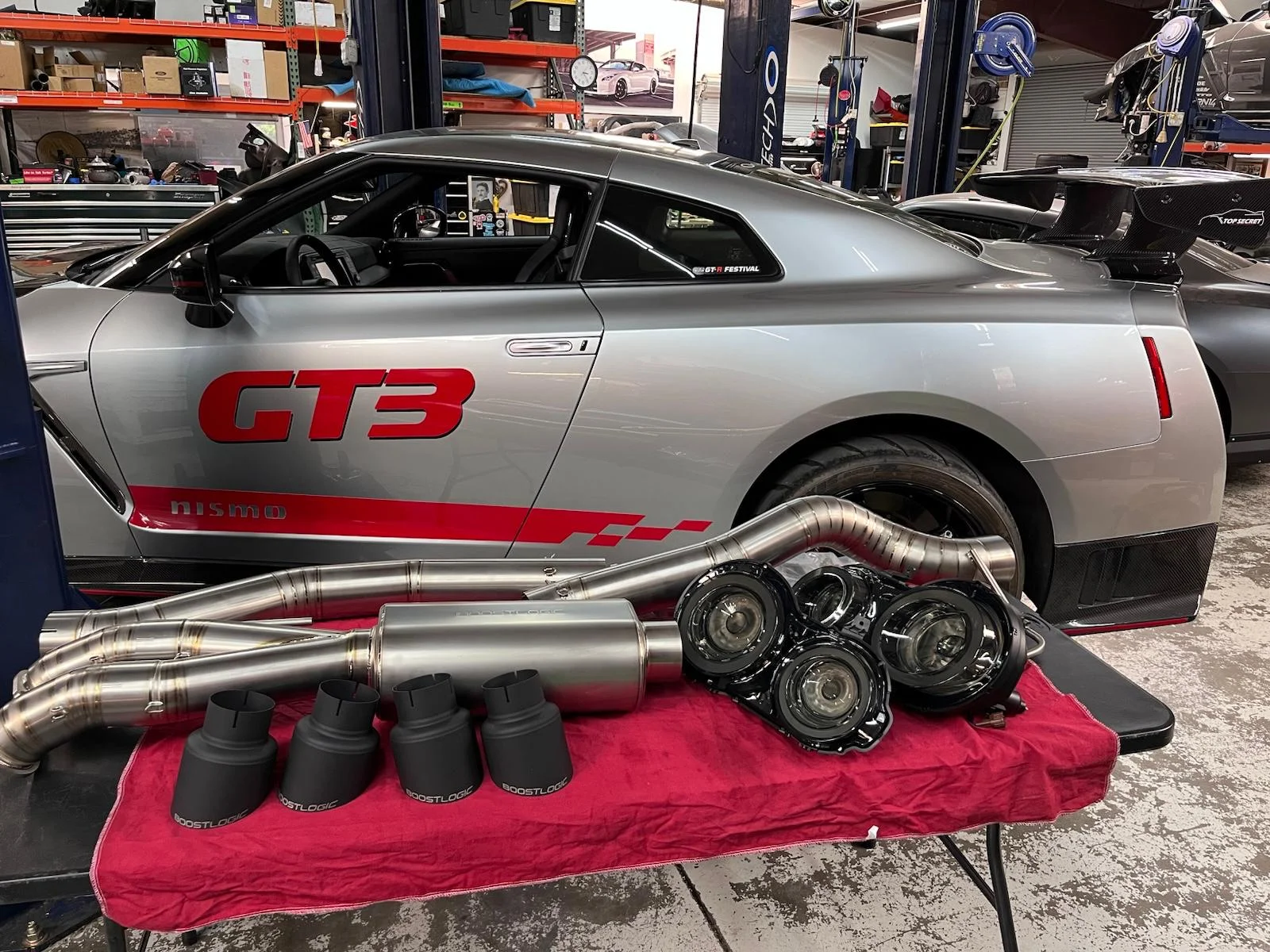

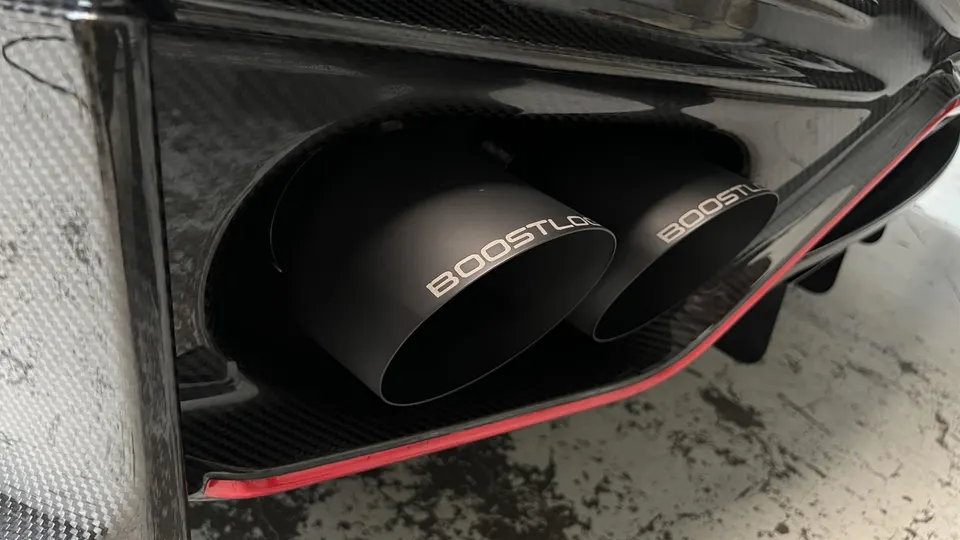

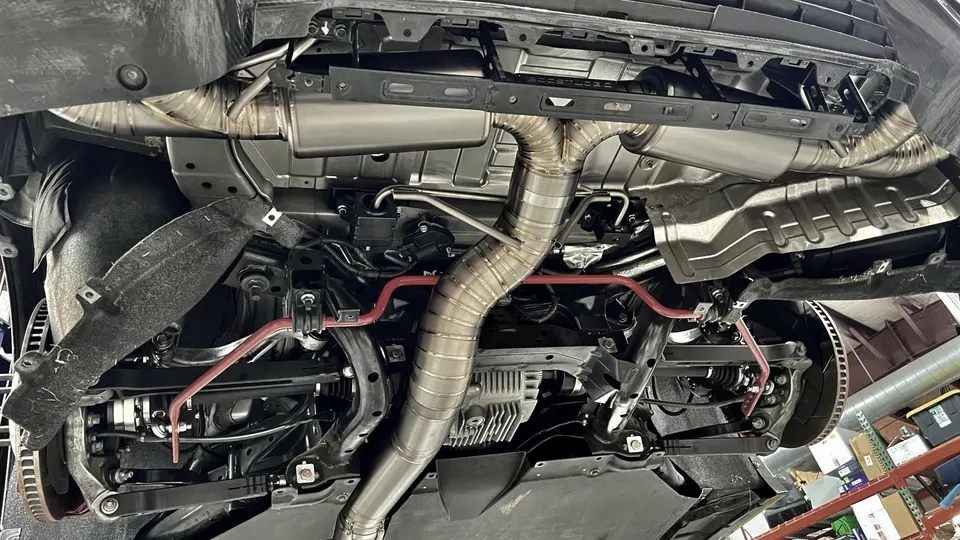

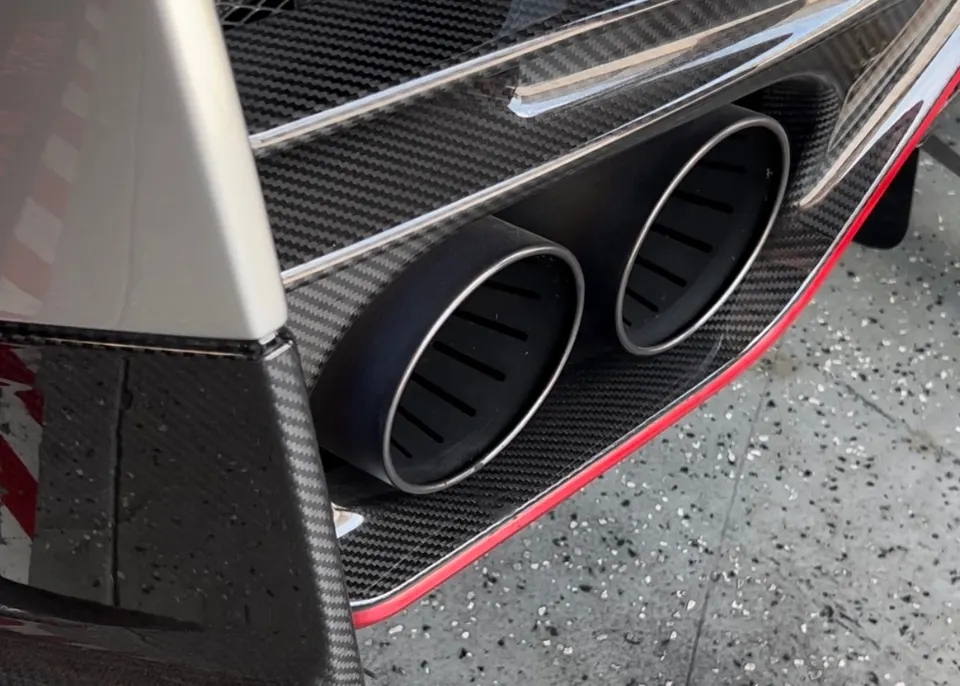

- HKS Racing exhaust system
Electronics & Tuning
- Motec M150 ECU

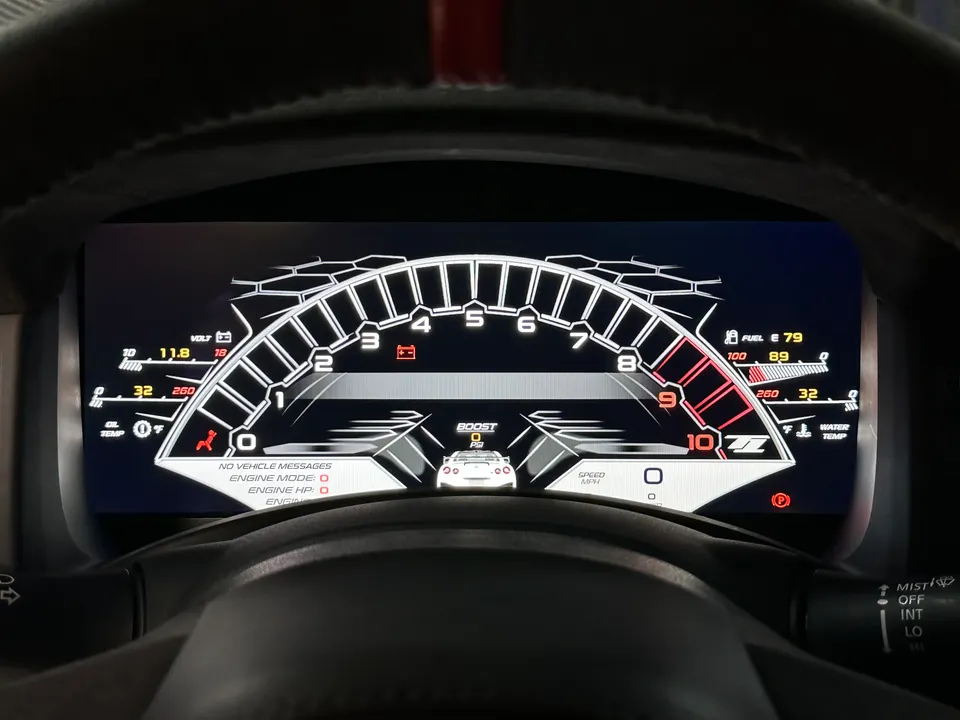

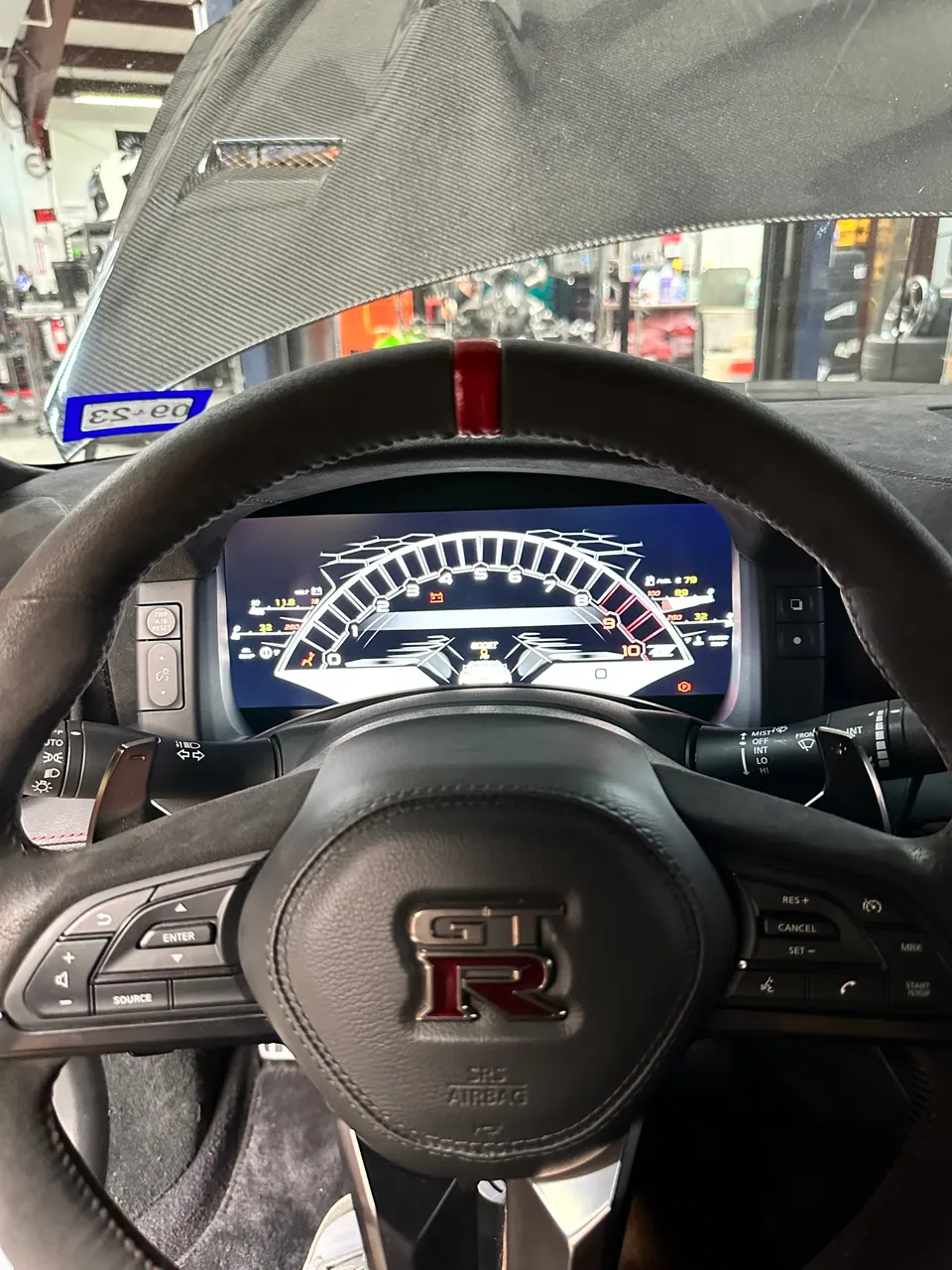

- Motec C1212 Digital Dash / Billet Mount
Wheels & Chassis

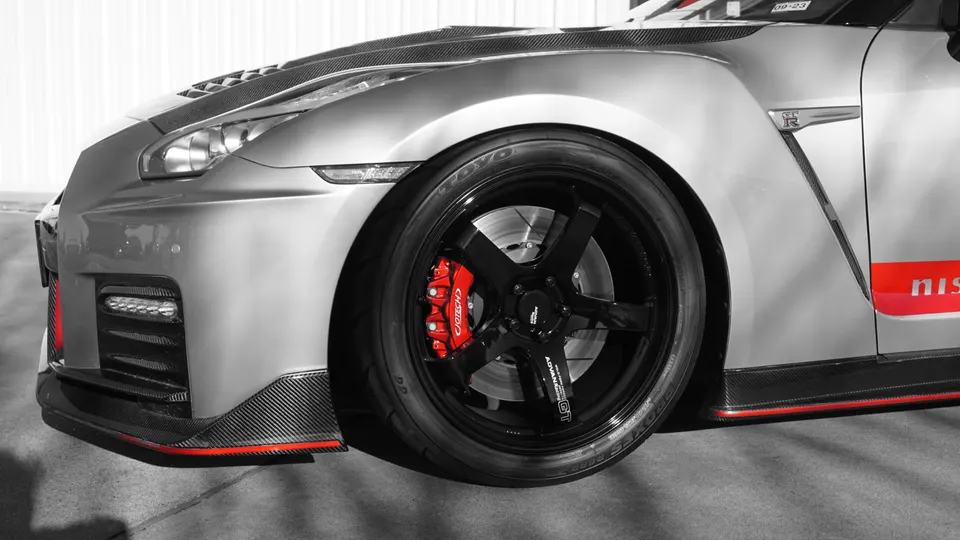

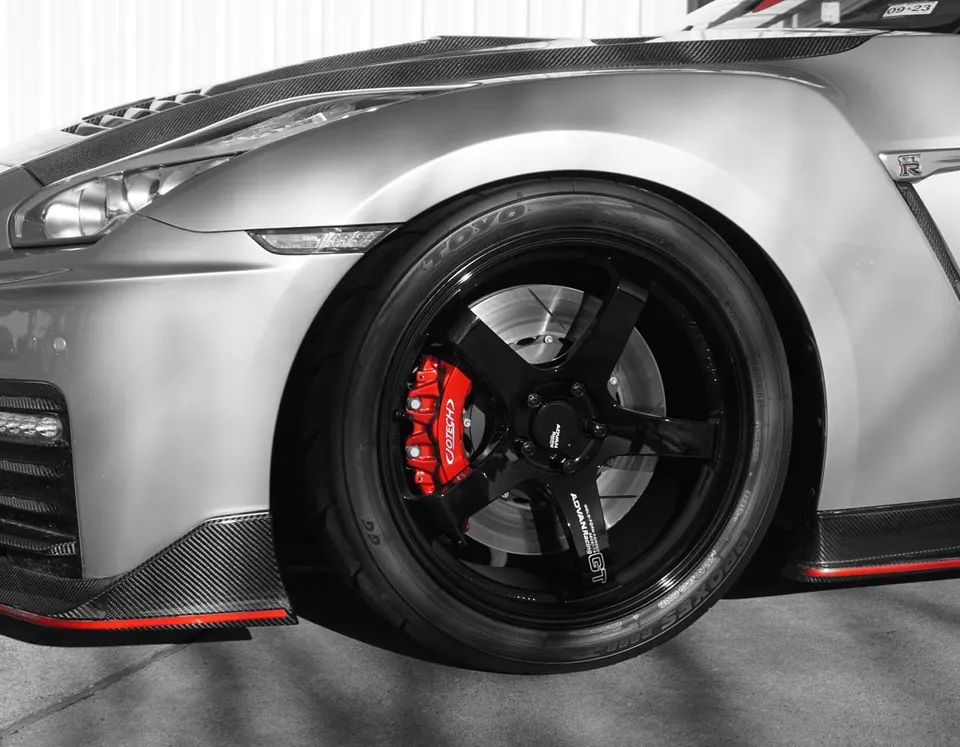

- Advan GT Premium Wheels 20x10.0 & 20x12.0
- Custom Painted Red Brake Calipers
Exterior & Aero

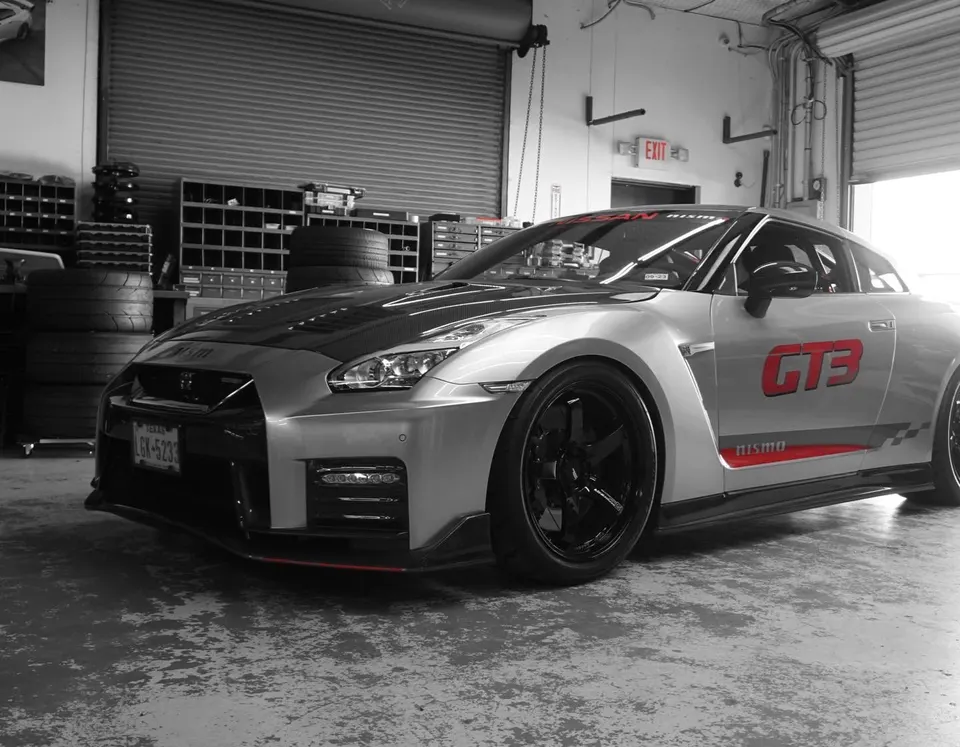

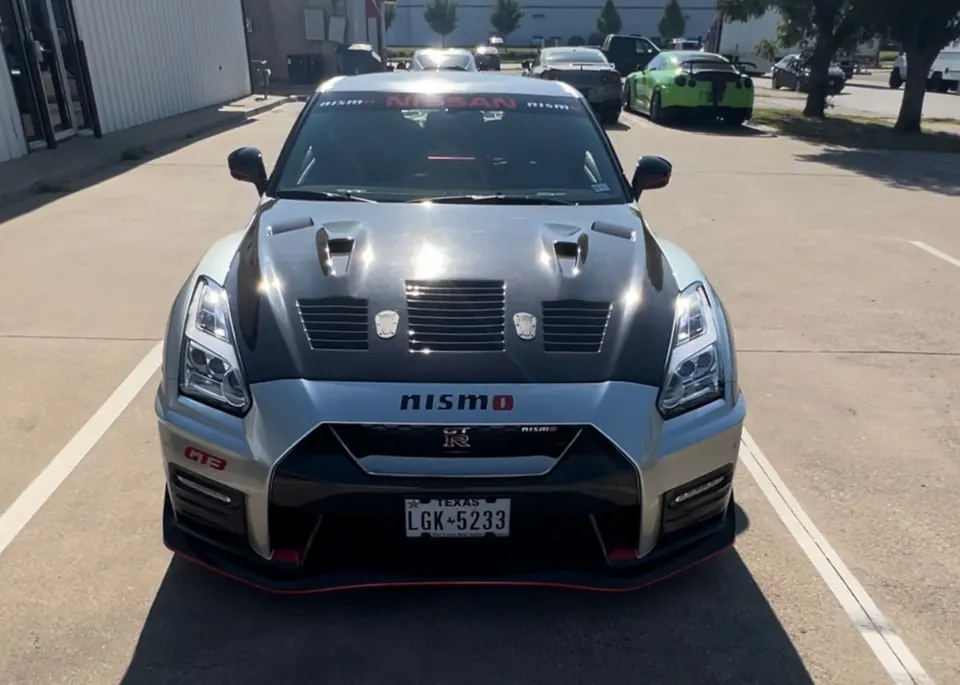

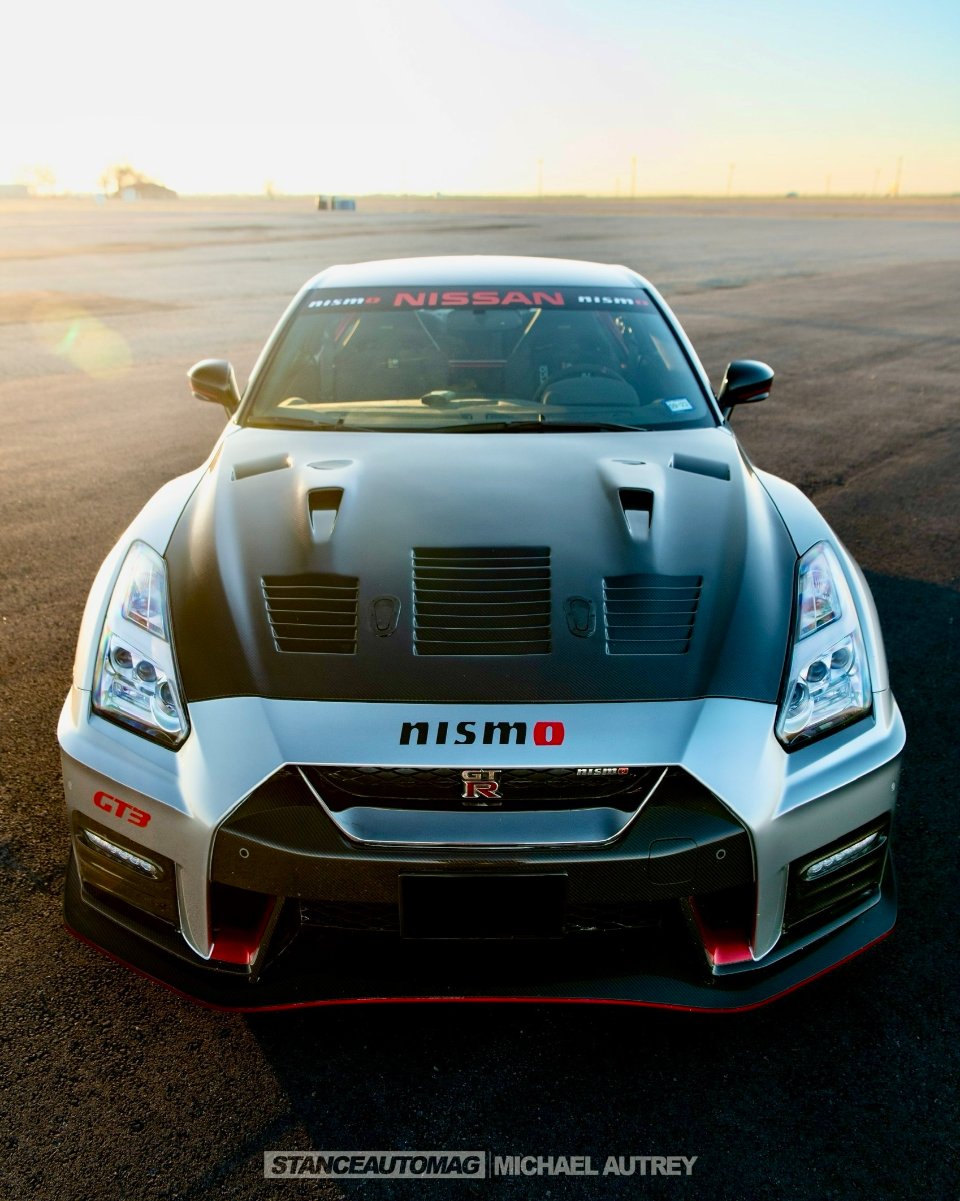

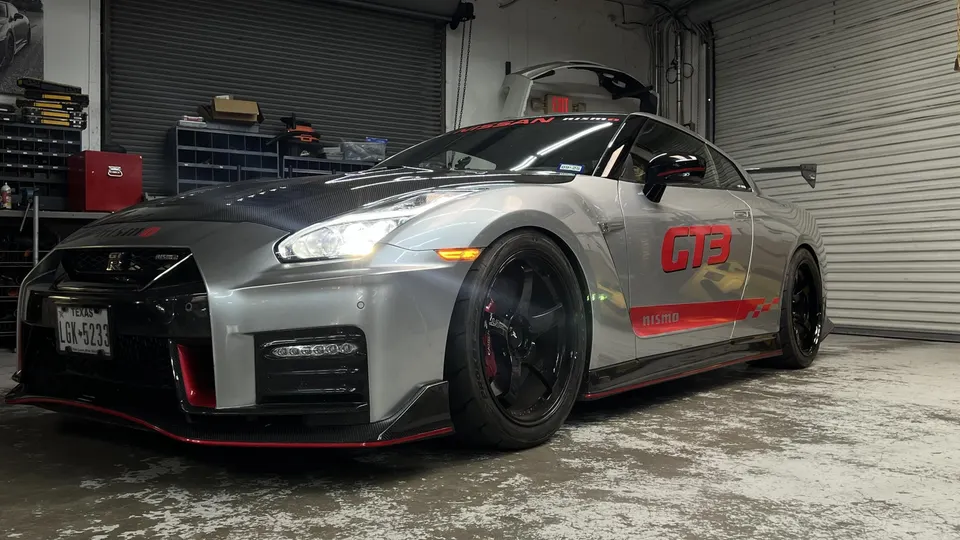

- Seibon GTII Carbon Hood
- Aerocatch Hood Latch
Interior & Safety

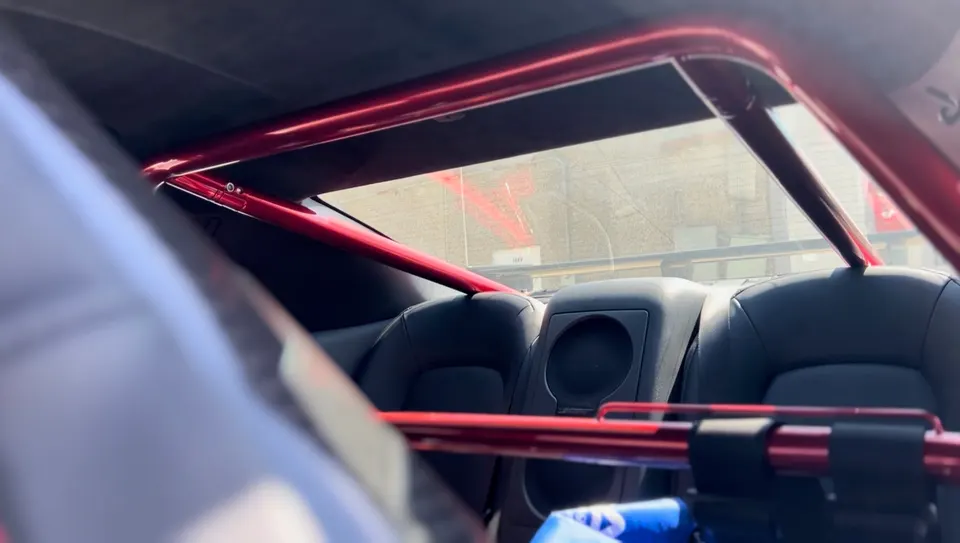

- Titan Candy Red Powder-coated 4-Point Roll Bars

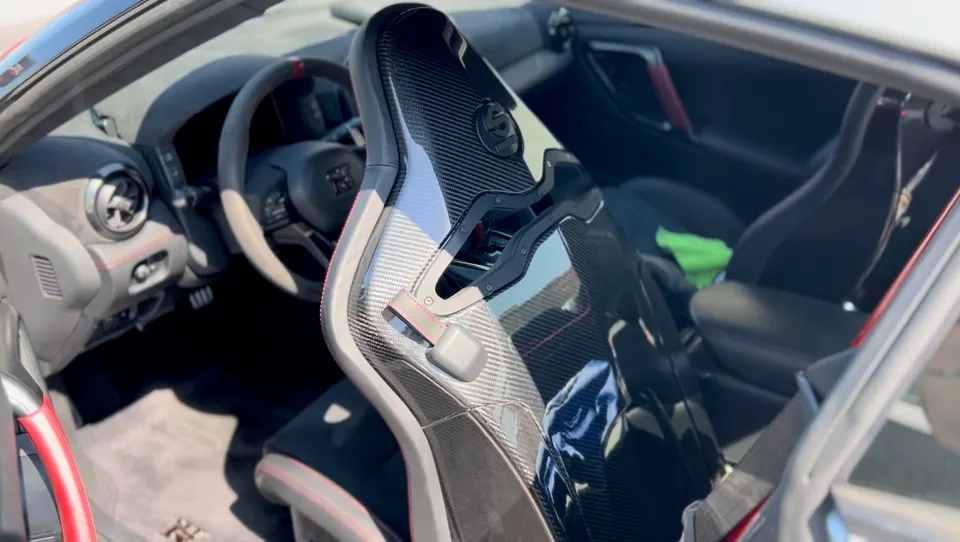

- Sparco SPX Special Edition Seats
- Sparco 4 Point Harness
Fuel System
- Injector Dynamics 1050x Primary/ 1700x Secondary Injectors
- Alpha Twin Brushless Fuel Pumps
- Alpha Fuel Rails / Fuel Pressure Regulator
- Jotech custom fuel lines
- Jotech Flex-Fuel Kit & Fuel Pres. Monitoring System
- Jotech Custom Flex-Tune: E85 / 93OCT / E98 with 9 Multiple Map Switch For different power levels
Drivetrain
- Sheptrans Stage3 One-K w/ Drag Pack Transmission
- Wavetrac Rear Diff
- DSS 1400+ Pro Rear Axles & Hub Kit
- DSS upgraded FWD shaft
- DCT Carbon Steering Wheel / Carbon Paddles
Supporting Mods
- Tomei cams
- Jotech Coolant Overflow Tank
- Toyo R888R - 285/35-20 & 325/30-20
